LTC2000AIY-14#PBF
  • Share:

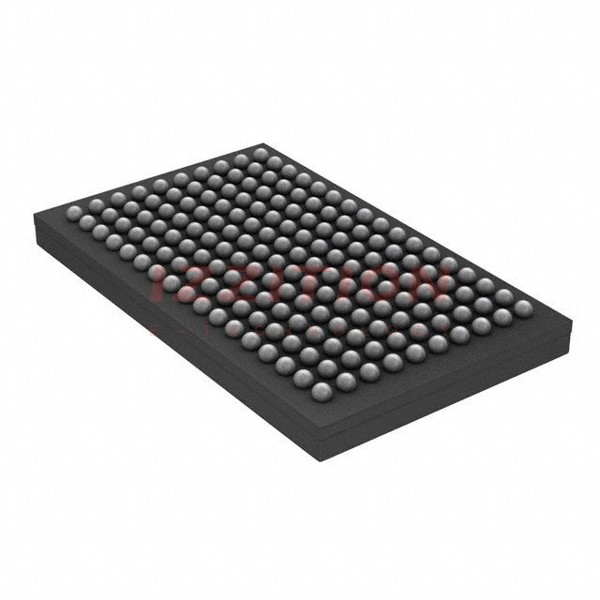

Analog Devices Inc. LTC2000AIY-14#PBF

Manufacturer No:
LTC2000AIY-14#PBF
Manufacturer:
Analog Devices Inc.
Package:
Bulk
Datasheet:
LTC2000AIY-14#PBF Datasheet
ECAD Model:
-
Description:
IC DAC 14BIT A-OUT 170BGA
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Bits:14
Number of D/A Converters:1
Settling Time:2.2ns (Typ)
Output Type:Current - Unbuffered
Differential Output:Yes
Data Interface:LVDS - Parallel
Reference Type:External, Internal
Voltage - Supply, Analog:1.8V ~ 1.92V, 3.135V ~ 3.465V
Voltage - Supply, Digital:1.8V ~ 1.92V, 3.135V ~ 3.465V
INL/DNL (LSB):±0.5, ±0.2
Architecture:Current Steering
Operating Temperature:-40°C ~ 85°C
Package / Case:170-LFBGA
Supplier Device Package:170-BGA (15x9)
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$105.76
10

Please send RFQ , we will respond immediately.

Similar Products

Part Number LTC2000AIY-14#PBF LTC2000AIY-16#PBF   LTC2000IY-14#PBF   LTC2000ACY-14#PBF   LTC2000AIY-11#PBF
Manufacturer Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Linear Technology
Product Status Active Active Active Active Obsolete
Number of Bits 14 16 14 14 11
Number of D/A Converters 1 1 1 1 1
Settling Time 2.2ns (Typ) 2.2ns (Typ) 2.2ns (Typ) 2.2ns (Typ) 2.2ns (Typ)
Output Type Current - Unbuffered Current - Unbuffered Current - Unbuffered Current - Unbuffered Current - Unbuffered
Differential Output Yes Yes Yes Yes Yes
Data Interface LVDS - Parallel LVDS - Parallel LVDS - Parallel LVDS - Parallel LVDS - Parallel
Reference Type External, Internal External, Internal External, Internal External, Internal External, Internal
Voltage - Supply, Analog 1.8V ~ 1.92V, 3.135V ~ 3.465V 1.8V ~ 1.92V, 3.135V ~ 3.465V 1.8V ~ 1.92V, 3.135V ~ 3.465V 1.8V ~ 1.92V, 3.135V ~ 3.465V 1.8V ~ 1.92V, 3.135V ~ 3.465V
Voltage - Supply, Digital 1.8V ~ 1.92V, 3.135V ~ 3.465V 1.8V ~ 1.92V, 3.135V ~ 3.465V 1.8V ~ 1.92V, 3.135V ~ 3.465V 1.8V ~ 1.92V, 3.135V ~ 3.465V 1.8V ~ 1.92V, 3.135V ~ 3.465V
INL/DNL (LSB) ±0.5, ±0.2 ±1, ±0.5 ±0.5, ±0.2 ±0.5, ±0.2 ±0.2, ±0.1
Architecture Current Steering Current Steering Current Steering Current Steering Current Steering
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Package / Case 170-LFBGA 170-LFBGA 170-LFBGA 170-LFBGA 170-LFBGA
Supplier Device Package 170-BGA (15x9) 170-BGA (15x9) 170-BGA (15x9) 170-BGA (15x9) 170-BGA (15x9)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
