| Part Number | LTC2000ACY-14#PBF | LTC2000ACY-16#PBF | LTC2000CY-14#PBF | LTC2000AIY-14#PBF | LTC2000ACY-11#PBF |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Number of Bits | 14 | 16 | 14 | 14 | 11 |
| Number of D/A Converters | 1 | 1 | 1 | 1 | 1 |
| Settling Time | 2.2ns (Typ) | 2.2ns (Typ) | 2.2ns (Typ) | 2.2ns (Typ) | 2.2ns (Typ) |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | Yes | Yes | Yes | Yes | Yes |
| Data Interface | LVDS - Parallel | LVDS - Parallel | LVDS - Parallel | LVDS - Parallel | LVDS - Parallel |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 1.8V ~ 1.92V, 3.135V ~ 3.465V | 1.8V ~ 1.92V, 3.135V ~ 3.465V | 1.8V ~ 1.92V, 3.135V ~ 3.465V | 1.8V ~ 1.92V, 3.135V ~ 3.465V | 1.8V ~ 1.92V, 3.135V ~ 3.465V |
| Voltage - Supply, Digital | 1.8V ~ 1.92V, 3.135V ~ 3.465V | 1.8V ~ 1.92V, 3.135V ~ 3.465V | 1.8V ~ 1.92V, 3.135V ~ 3.465V | 1.8V ~ 1.92V, 3.135V ~ 3.465V | 1.8V ~ 1.92V, 3.135V ~ 3.465V |
| INL/DNL (LSB) | ±0.5, ±0.2 | ±1, ±0.5 | ±0.5, ±0.2 | ±0.5, ±0.2 | ±0.2, ±0.1 |
| Architecture | Current Steering | Current Steering | Current Steering | Current Steering | Current Steering |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 85°C | 0°C ~ 70°C |

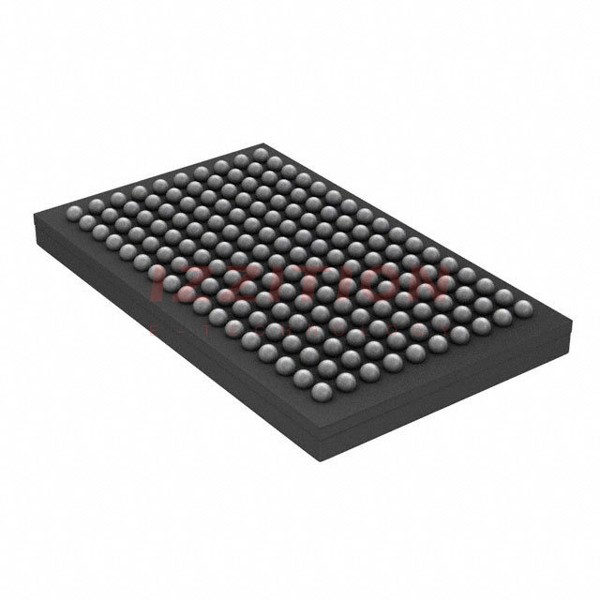

| Package / Case | 170-LFBGA | 170-LFBGA | 170-LFBGA | 170-LFBGA | 170-LFBGA |
| Supplier Device Package | 170-BGA (15x9) | 170-BGA (15x9) | 170-BGA (15x9) | 170-BGA (15x9) | 170-BGA (15x9) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
