Please send RFQ , we will respond immediately.

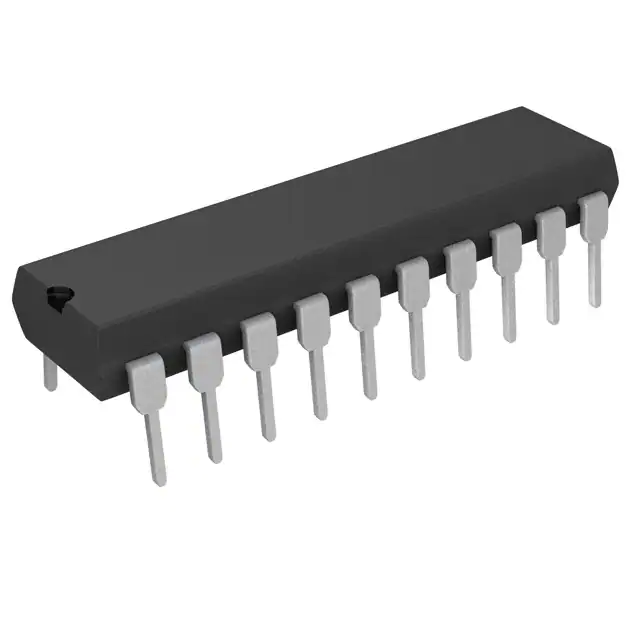

| Part Number | LTC1296DCN#PBF | LTC1296DIN#PBF | LTC1293DCN#PBF | LTC1294DCN#PBF | LTC1296BCN#PBF | LTC1296CCN#PBF |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Data Acquisition System (DAS), ADC | Data Acquisition System (DAS), ADC | Data Acquisition System (DAS), ADC | Data Acquisition System (DAS), ADC | Data Acquisition System (DAS), ADC | Data Acquisition System (DAS), ADC |
| Number of Channels | 8 | 8 | 8 | 8 | 8 | 8 |
| Resolution (Bits) | 12 b | 12 b | 12 b | 12 b | 12 b | 12 b |
| Sampling Rate (Per Second) | 46.5k | 46.5k | 46.5k | 46.5k | 46.5k | 46.5k |
| Data Interface | Serial, Parallel | Serial, Parallel | Serial, Parallel | Serial, Parallel | Serial, Parallel | Serial, Parallel |
| Voltage Supply Source | Dual ± | Dual ± | Dual ± | Dual ± | Dual ± | Dual ± |
| Voltage - Supply | ±5V, 5V | ±5V, 5V | ±5V, 5V | ±5V, 5V | ±5V, 5V | ±5V, 5V |
| Operating Temperature | 0°C ~ 70°C | -40°C ~ 85°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP | 20-PDIP | 16-PDIP | 20-PDIP | 20-PDIP | 20-PDIP |
