LTC1275ACSW#TRPBF
  • Share:

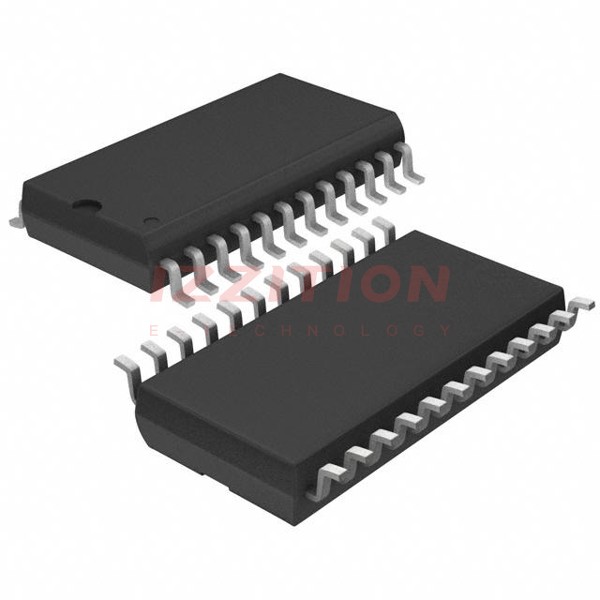

Analog Devices Inc. LTC1275ACSW#TRPBF

Manufacturer No:
LTC1275ACSW#TRPBF
Manufacturer:
Analog Devices Inc.
Package:
Tape & Reel (TR)
Datasheet:
LTC1275ACSW#TRPBF Datasheet
ECAD Model:
-
Description:
IC ADC 12BIT SAR 24SOIC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Bits:12
Sampling Rate (Per Second):300k
Number of Inputs:1
Input Type:Single Ended
Data Interface:Parallel
Configuration:S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:SAR
Reference Type:Internal
Voltage - Supply, Analog:5V, -2.45V ~ 5.25
Voltage - Supply, Digital:5V
Features:-
Operating Temperature:0°C ~ 70°C
Package / Case:24-SOIC (0.295", 7.50mm Width)
Supplier Device Package:24-SOIC
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$28.98
5

Please send RFQ , we will respond immediately.

Similar Products

Part Number LTC1275ACSW#TRPBF LTC1275BCSW#TRPBF   LTC1276ACSW#TRPBF   LTC1273ACSW#TRPBF
Manufacturer Analog Devices Inc. Linear Technology Analog Devices Inc. Analog Devices Inc.
Product Status Active Active Active Active
Number of Bits 12 12 12 12
Sampling Rate (Per Second) 300k 300k 300k 300k
Number of Inputs 1 1 1 1
Input Type Single Ended Single Ended Single Ended Single Ended
Data Interface Parallel Parallel Parallel Parallel
Configuration S/H-ADC S/H-ADC S/H-ADC S/H-ADC
Ratio - S/H:ADC 1:1 1:1 1:1 1:1
Number of A/D Converters 1 1 1 1
Architecture SAR SAR SAR SAR
Reference Type Internal Internal Internal Internal
Voltage - Supply, Analog 5V, -2.45V ~ 5.25 5V, -2.45V ~ 5.25 ±5V, 5V 5V
Voltage - Supply, Digital 5V 5V 5V 5V
Features - - - -
Operating Temperature 0°C ~ 70°C 0°C ~ 70°C 0°C ~ 70°C 0°C ~ 70°C
Package / Case 24-SOIC (0.295", 7.50mm Width) 24-SOIC (0.295", 7.50mm Width) 24-SOIC (0.295", 7.50mm Width) 24-SOIC (0.295", 7.50mm Width)
Supplier Device Package 24-SOIC 24-SOIC 24-SOIC 24-SOIC
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
