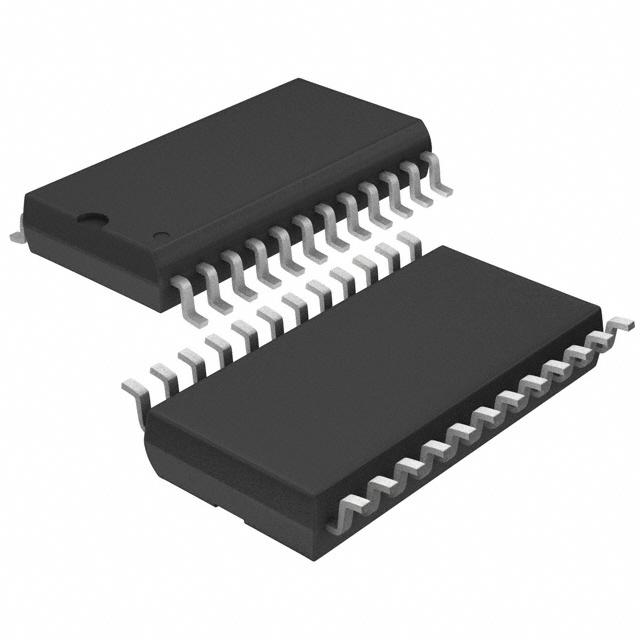

| Part Number | LTC1064CSW#TRPBF | LTC1065CSW#TRPBF | LTC1164CSW#TRPBF | LTC1264CSW#TRPBF | LTC1060CSW#TRPBF | LTC1061CSW#TRPBF | LTC1062CSW#TRPBF | LTC1063CSW#TRPBF |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Filter Type | Universal Switched Capacitor | Bessel, Low Pass Switched Capacitor | Universal Switched Capacitor | Universal Switched Capacitor | Universal Switched Capacitor | Universal Switched Capacitor | Butterworth, Low Pass Switched Capacitor | Butterworth, Low Pass Switched Capacitor |
| Frequency - Cutoff or Center | 140kHz | 50kHz | 20kHz | 250kHz | 30kHz | 35kHz | 20kHz | 50kHz |
| Number of Filters | 4 | 1 | 4 | 4 | 2 | 3 | 1 | 1 |
| Filter Order | 8th | 5th | 8th | 2nd | 4th | 6th | 5th | 5th |
| Voltage - Supply | ±2.37V ~ 8V | ±2.37V ~ 8V | ±2.37V ~ 8V | ±2.37V ~ 8V | ±2.37V ~ 5V | 4.74V ~ 16V, ±2.37V ~ 8V | ±8V, 5V | ±2.37V ~ 8V |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) | 16-SOIC (0.295", 7.50mm Width) | 24-SOIC (0.295", 7.50mm Width) | 24-SOIC (0.295", 7.50mm Width) | 20-SOIC (0.295", 7.50mm Width) | 20-SOIC (0.295", 7.50mm Width) | 16-SOIC (0.295", 7.50mm Width) | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC | 16-SO | 24-SOIC | 24-SOIC | 20-SO | 20-SO | 16-SO | 16-SO |
