Please send RFQ , we will respond immediately.
| Part Number | LT8612EUDE | LT8612HUDE | LT8612IUDE | LT8613EUDE | LT8616EUDE |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive or Negative | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 | 2 |
| Voltage - Input (Min) | 3.4V | 3.4V | 3.4V | 3.4V | 3.4V |
| Voltage - Input (Max) | 42V | 42V | 42V | 42V | 42V |
| Voltage - Output (Min/Fixed) | 0.97V | 0.97V | 0.97V | 0.97V | 0.79V |
| Voltage - Output (Max) | 41.6V | 41.6V | 41.6V | 41.58V | 41.8V |
| Current - Output | 6A | 6A | 6A | 6A | 1.5A, 2.5A |
| Frequency - Switching | 200kHz ~ 2.2MHz | 200kHz ~ 2.2MHz | 200kHz ~ 2.2MHz | 200kHz ~ 2.2MHz | 200kHz ~ 3MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

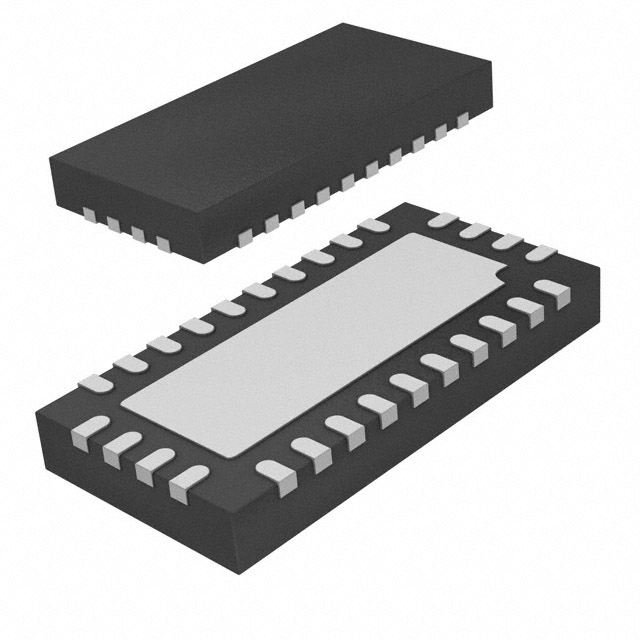

| Package / Case | 28-WFQFN Exposed Pad | 28-WFQFN Exposed Pad | 28-WFQFN Exposed Pad | 28-WFQFN Exposed Pad | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-QFN (3x6) | 28-QFN (3x6) | 28-QFN (3x6) | 28-QFN (3x6) | 28-QFN (3x6) |
