Please send RFQ , we will respond immediately.

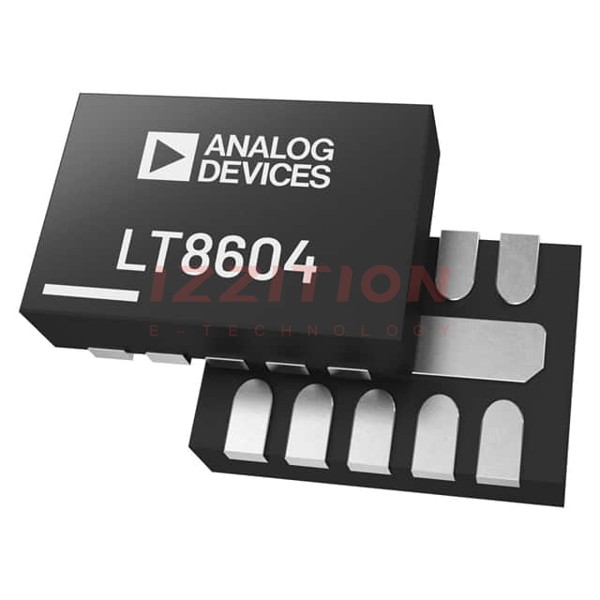

| Part Number | LT8604EDDBM#TRMPBF | LT8604JDDBM#TRMPBF | LT8604IDDBM#TRMPBF | LT8604EDDBM#TRPBF |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 3.2V | 3.2V | 3.2V | 3.2V |
| Voltage - Input (Max) | 42V | 42V | 42V | 42V |
| Voltage - Output (Min/Fixed) | 0.78V | 0.78V | 0.78V | 0.78V |
| Voltage - Output (Max) | 42V | 42V | 42V | 42V |
| Current - Output | 120mA | 120mA | 120mA | 120mA |
| Frequency - Switching | 200kHz ~ 2.2MHz | 200kHz ~ 2.2MHz | 200kHz ~ 2.2MHz | 200kHz ~ 2.2MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |
| Package / Case | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x2) | 10-DFN (3x2) | 10-DFN (3x2) | 10-DFN (3x2) |
