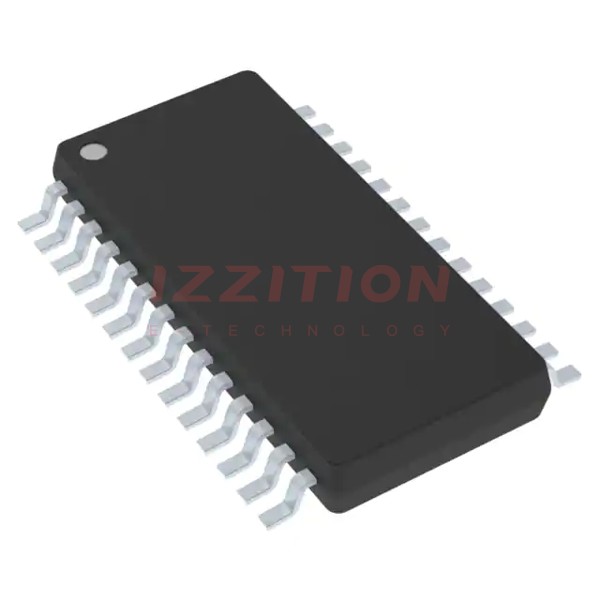

| Part Number | LT8390JFE#PBF | LT8392JFE#PBF | LT8390EFE#PBF | LT8390HFE#PBF | LT8390IFE#PBF |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck-Boost | Buck-Boost | Buck-Boost | Buck-Boost | Buck-Boost |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Output Phases | 1 | 2 | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 60V | 3V ~ 60V | 4V ~ 60V | 4V ~ 60V | 4V ~ 60V |
| Frequency - Switching | 150kHz ~ 650kHz | 400kHz | 190kHz ~ 630kHz | 190kHz ~ 630kHz | 190kHz ~ 630kHz |
| Duty Cycle (Max) | 95% | - | 95% | 95% | 95% |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes |
| Clock Sync | Yes | Yes | Yes | Yes | Yes |
| Serial Interfaces | - | - | - | - | - |
| Control Features | Current Limit, Enable, Frequency Control, Phase Control, Power Good, Soft Start | Enable, Frequency Control, Power Good, Soft Start | Current Limit, Frequency Control, Soft Start | Current Limit, Frequency Control, Soft Start | Current Limit, Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 28-TSSOP-EP | 28-TSSOP-EP | 28-TSSOP-EP | 28-TSSOP-EP | 28-TSSOP-EP |
