| Part Number | LT8336JV#PBF | LT8337JV#PBF | LT8336EV#PBF | LT8336HV#PBF |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Function | Step-Up | Step-Up | Step-Up | Step-Up |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Boost | Boost | Boost | Boost |
| Output Type | Adjustable | Programmable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 2.7V | 2.7V | 2.7V | 2.7V |
| Voltage - Input (Max) | 40V | 28V | 40V | 40V |
| Voltage - Output (Min/Fixed) | 2.7V | 1V | 2.7V | 2.7V |
| Voltage - Output (Max) | 40V | 26V | 40V | 40V |
| Current - Output | 2.5A | 5A | 2.5A | 2.5A |
| Frequency - Switching | 300kHz ~ 3MHz | 300kHz ~ 3MHz | 300kHz ~ 3MHz | 300kHz ~ 3MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

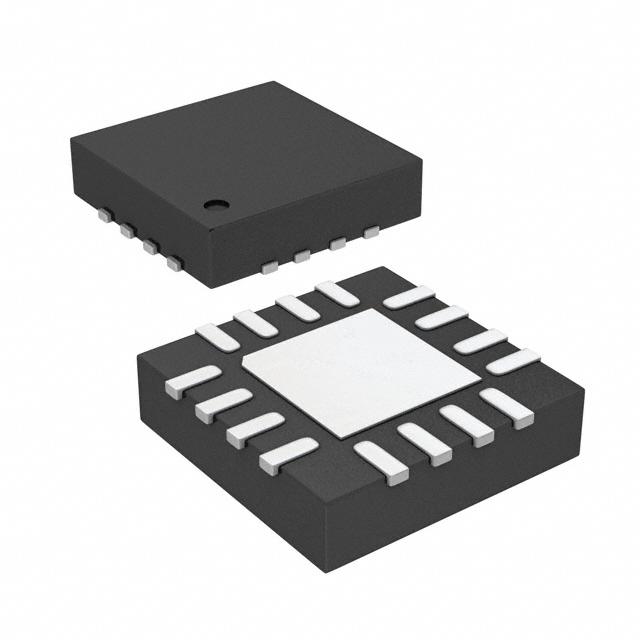

| Package / Case | 16-TFQFN Exposed Pad | 16-TFQFN Exposed Pad | 16-TFQFN Exposed Pad | 16-TFQFN Exposed Pad |
| Supplier Device Package | 16-LQFN (3x3) | 16-LQFN (3x3) | 16-LQFN (3x3) | 16-LQFN (3x3) |
