| Part Number | LT8330HDDB#TRPBF | LT8330IDDB#TRPBF | LT8330JDDB#TRPBF | LT8330EDDB#TRPBF | LT8330HDDB#TRMPBF |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Function | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive or Negative, Isolation Capable | Positive or Negative, Isolation Capable | Positive or Negative | Positive or Negative, Isolation Capable | Positive or Negative, Isolation Capable |
| Topology | Boost, SEPIC | Boost, SEPIC | Boost, SEPIC | Boost, SEPIC | Boost, SEPIC |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 3V | 3V | 3V | 3V | 3V |
| Voltage - Input (Max) | 40V | 40V | 40V | 40V | 40V |
| Voltage - Output (Min/Fixed) | 1.6V, -0.8V | 1.6V, -0.8V | 1.6V, -0.8V | 1.6V, -0.8V | 1.6V, -0.8V |
| Voltage - Output (Max) | 60V (Switch) | 60V (Switch) | 60V (Switch) | 60V (Switch) | 60V (Switch) |
| Current - Output | 1A | 1A | 1A | 1A | 1A |
| Frequency - Switching | 2MHz | 2MHz | 2MHz | 2MHz | 2MHz |
| Synchronous Rectifier | No | No | No | No | No |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

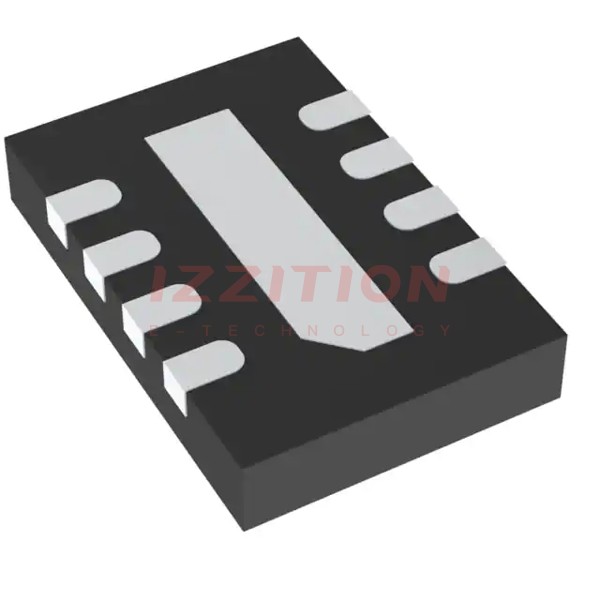

| Package / Case | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (3x2) | 8-DFN (3x2) | 8-DFN (3x2) | 8-DFN (3x2) | 8-DFN (3x2) |
