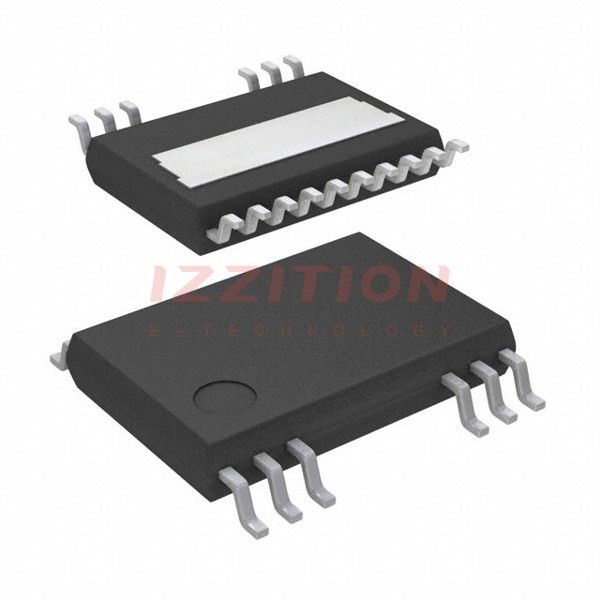

| Part Number | LT8315IFE#TRPBF | LT8315EFE#TRPBF | LT8315HFE#TRPBF |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Function | Step-Down, Step-Up/Step-Down | Step-Down, Step-Up/Step-Down | Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable |
| Topology | Flyback | Flyback | Flyback |
| Output Type | Fixed | Fixed | Fixed |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Input (Min) | 18V | 18V | 18V |
| Voltage - Input (Max) | 560V | 560V | 560V |
| Voltage - Output (Min/Fixed) | - | - | - |
| Voltage - Output (Max) | - | - | - |
| Current - Output | 800mA | 800mA | 800mA |
| Frequency - Switching | 220Hz ~ 140kHz | 220Hz ~ 140kHz | 220Hz ~ 140kHz |
| Synchronous Rectifier | No | No | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width), 16 Leads, Exposed Pad | 20-TSSOP (0.173", 4.40mm Width), 16 Leads, Exposed Pad | 20-TSSOP (0.173", 4.40mm Width), 16 Leads, Exposed Pad |
| Supplier Device Package | 20-TSSOP-EP | 20-TSSOP-EP | 20-TSSOP-EP |
