| Part Number | LT6660KCDC-3.3#TRPBF | LT6660HCDC-3.3#TRPBF | LT6660JCDC-3.3#TRPBF | LT6660KCDC-3.3#TRMPBF |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Reference Type | Series | Series | Series | Series |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Voltage - Output (Min/Fixed) | 3.3V | 3.3V | 3.3V | 3.3V |
| Voltage - Output (Max) | - | - | - | - |
| Current - Output | 20 mA | 20 mA | 20 mA | 20 mA |
| Tolerance | ±0.5% | ±0.2% | ±0.4% | ±0.5% |
| Temperature Coefficient | 50ppm/°C | 20ppm/°C | 20ppm/°C | 50ppm/°C |
| Noise - 0.1Hz to 10Hz | 4ppmp-p | 4ppmp-p | 4ppmp-p | 4ppmp-p |
| Noise - 10Hz to 10kHz | 4ppmrms | 4ppmrms | 4ppmrms | 4ppmrms |
| Voltage - Input | 5.8V ~ 30V | 5.8V ~ 30V | 5.8V ~ 30V | 5.8V ~ 30V |
| Current - Supply | 220µA | 220µA | 220µA | 220µA |
| Current - Cathode | - | - | - | - |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

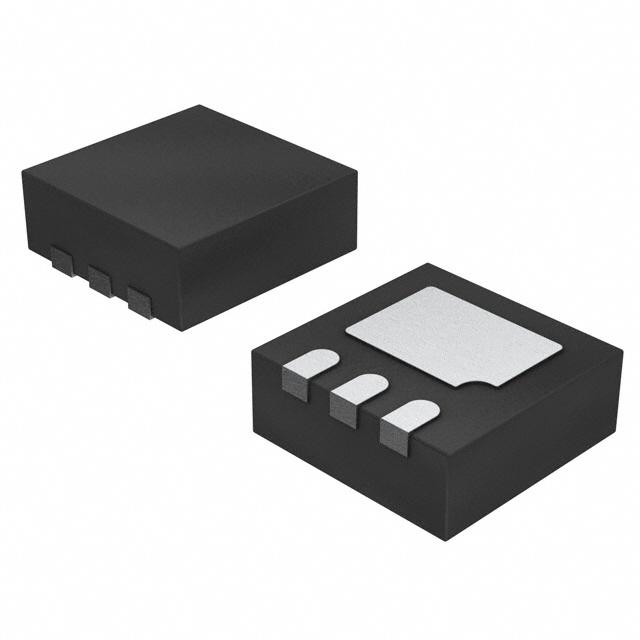

| Package / Case | 3-WFDFN Exposed Pad | 3-WFDFN Exposed Pad | 3-WFDFN Exposed Pad | 3-WFDFN Exposed Pad |
| Supplier Device Package | 3-DFN (2x2) | 3-DFN (2x2) | 3-DFN (2x2) | 3-DFN (2x2) |
