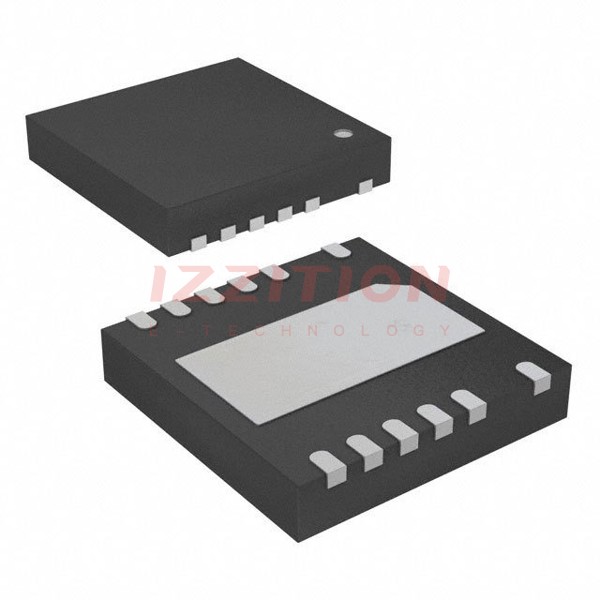

| Part Number | LT6376IDF#TRPBF | LT6375IDF#TRPBF | LT6376HDF#TRPBF |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Amplifier Type | General Purpose | Differential | General Purpose |
| Number of Circuits | 1 | 1 | 1 |
| Output Type | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 4.1V/µs | 2.4V/µs | 4.1V/µs |
| Gain Bandwidth Product | - | - | - |
| -3db Bandwidth | 300 kHz | 575 kHz | 300 kHz |
| Current - Input Bias | - | - | - |
| Voltage - Input Offset | 50 µV | 120 µV | 50 µV |
| Current - Supply | 350µA | 350µA | 350µA |
| Current - Output / Channel | 28 mA | 28 mA | 28 mA |
| Voltage - Supply Span (Min) | 3 V | 3 V | 3 V |
| Voltage - Supply Span (Max) | 50 V | 50 V | 50 V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 14-WFDFN Exposed Pad, 12 Leads | 14-WFDFN Exposed Pad, 12 Leads | 14-WFDFN Exposed Pad, 12 Leads |
| Supplier Device Package | 14-DFN (4x4) | 14-DFN (4x4) | 14-DFN (4x4) |
