| Part Number | LT6003CDC | LT6003HDC | LT6003IDC |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Amplifier Type | General Purpose | General Purpose | General Purpose |
| Number of Circuits | 1 | 1 | 1 |
| Output Type | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 0.0013V/µs | 0.0013V/µs | 0.0013V/µs |
| Gain Bandwidth Product | 3 kHz | 3 kHz | 3 kHz |
| -3db Bandwidth | - | - | - |
| Current - Input Bias | 40 pA | 40 pA | 40 pA |
| Voltage - Input Offset | 300 µV | 300 µV | 300 µV |
| Current - Supply | 1.25µA | 1.25µA | 1.25µA |
| Current - Output / Channel | 9 mA | 9 mA | 9 mA |
| Voltage - Supply Span (Min) | 1.6 V | 1.6 V | 1.6 V |
| Voltage - Supply Span (Max) | 16 V | 16 V | 16 V |
| Operating Temperature | 0°C ~ 70°C | -40°C ~ 125°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

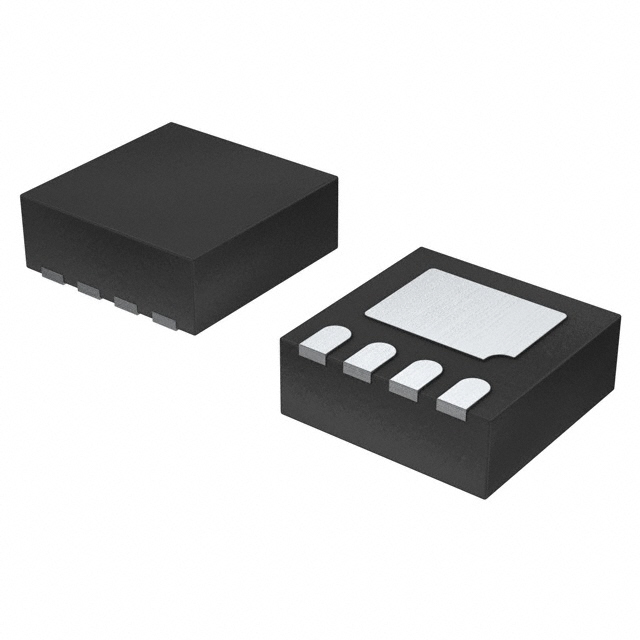

| Package / Case | 4-WFSFN Exposed Pad | 4-WFSFN Exposed Pad | 4-WFSFN Exposed Pad |
| Supplier Device Package | 4-DFN (2x2) | 4-DFN (2x2) | 4-DFN (2x2) |
