Please send RFQ , we will respond immediately.

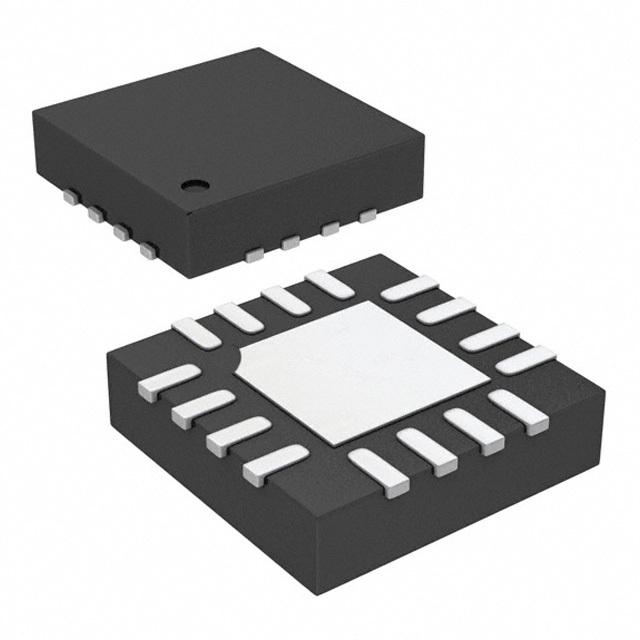

| Part Number | LT5525EUF#PBF | LT5526EUF#PBF | LT5527EUF#PBF | LT5520EUF#PBF | LT5521EUF#PBF | LT5522EUF#PBF |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| RF Type | General Purpose | General Purpose | Cellular, GSM, MMDS, TD-SCDMA, UMTS, WCDMA | General Purpose | Cellular, PHS, UMTS, WCDMA | Cellular, PCS, UMTS |
| Frequency | 800MHz ~ 2.5GHz | 1kHz ~ 2GHz | 400MHz ~ 3.7GHz | 1.3GHz ~ 2.3GHz | 10MHz ~ 3.7GHz | 400MHz ~ 2.7GHz |
| Number of Mixers | 1 | 1 | 1 | 1 | 1 | 1 |
| Gain | -1.9dB | 0.6dB | 2.3dB | -1dB | -0.5dB | -0.2dB |
| Noise Figure | 15.1dB | 11dB | 12.5dB | 15dB | 12.5dB | 13.9dB |
| Secondary Attributes | Down Converter | Down Converter | Down Converter | Up Converter | Up Converter | Down Converter |
| Current - Supply | 33mA | 28mA | 78mA | 60mA | 98mA | 56mA |
| Voltage - Supply | 3.6V ~ 5.3V | 3.6V ~ 5.3V | 4.5V ~ 5.25V | 4.5V ~ 5.25V | 3.15V ~ 5.25V | 4.5V ~ 5.25V |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) | 16-QFN (4x4) | 16-QFN (4x4) | 16-QFN (4x4) | 16-QFN (4x4) | 16-QFN (4x4) |
