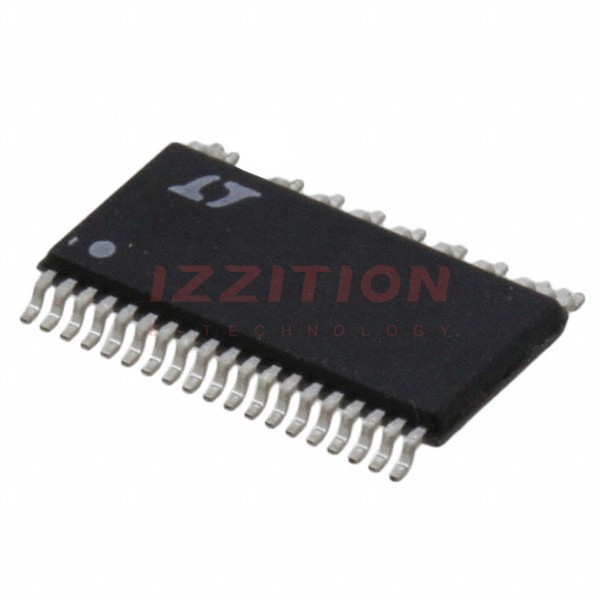

| Part Number | LT3752IFE#PBF | LT3753IFE#PBF | LT3782IFE#PBF | LT3752EFE#PBF | LT3752HFE#PBF |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up | Step-Up/Step-Down | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable | Positive, Isolation Capable | Positive | Positive, Isolation Capable | Positive, Isolation Capable |
| Topology | Forward Converter | Forward Converter | Boost | Forward Converter | Forward Converter |
| Number of Outputs | 1 | 1 | 2 | 1 | 1 |
| Output Phases | 1 | 1 | 2 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 6.5V ~ 100V | 8.5V ~ 100V | 6V ~ 40V | 6.5V ~ 100V | 6.5V ~ 100V |
| Frequency - Switching | 100kHz ~ 500kHz | 100kHz ~ 500kHz | 154kHz ~ 465kHz | 100kHz ~ 500kHz | 100kHz ~ 500kHz |
| Duty Cycle (Max) | 95% | - | 94% | 95% | 95% |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes |
| Clock Sync | Yes | Yes | Yes | Yes | Yes |
| Serial Interfaces | - | - | - | - | - |
| Control Features | Enable, Frequency Control, Soft Start | Frequency Control, Soft Start | Enable, Reset, Soft Start | Enable, Frequency Control, Soft Start | Enable, Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 38-TFSOP (0.173", 4.40mm Width) 31 Leads, Exposed Pad | 38-TFSOP (0.173", 4.40mm Width) 31 Leads, Exposed Pad | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | 38-TFSOP (0.173", 4.40mm Width) 31 Leads, Exposed Pad | 38-TFSOP (0.173", 4.40mm Width) 31 Leads, Exposed Pad |
| Supplier Device Package | 38-TSSOP-EP | 38-TSSOP-EP | 28-TSSOP-EP | 38-TSSOP-EP | 38-TSSOP-EP |
