| Part Number | LT3748IMS#TRPBF | LT3748EMS#TRPBF | LT3748HMS#TRPBF |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable |
| Topology | Flyback | Flyback | Flyback |
| Number of Outputs | 1 | 1 | 1 |
| Output Phases | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 5V ~ 100V | 5V ~ 100V | 5V ~ 100V |
| Frequency - Switching | - | - | - |
| Duty Cycle (Max) | - | - | - |
| Synchronous Rectifier | No | No | No |
| Clock Sync | No | No | No |
| Serial Interfaces | - | - | - |
| Control Features | Enable, Soft Start | Enable, Soft Start | Enable, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

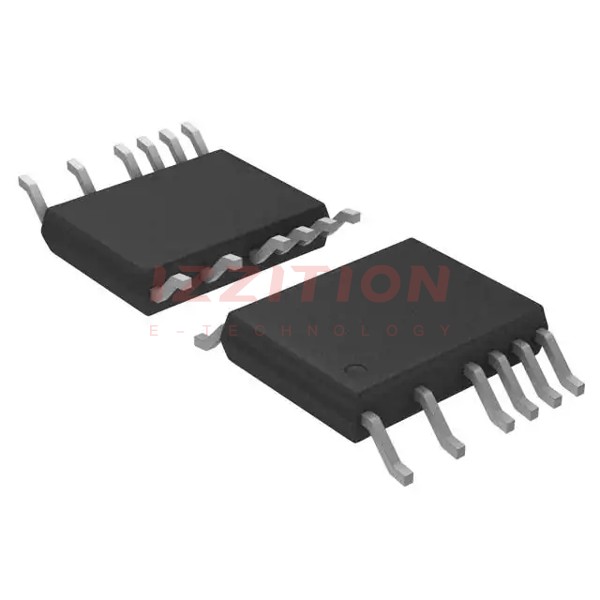

| Package / Case | 16-TFSOP (0.118", 3.00mm Width), 12 Leads | 16-TFSOP (0.118", 3.00mm Width), 12 Leads | 16-TFSOP (0.118", 3.00mm Width), 12 Leads |
| Supplier Device Package | 16-MSOP | 16-MSOP | 16-MSOP |
