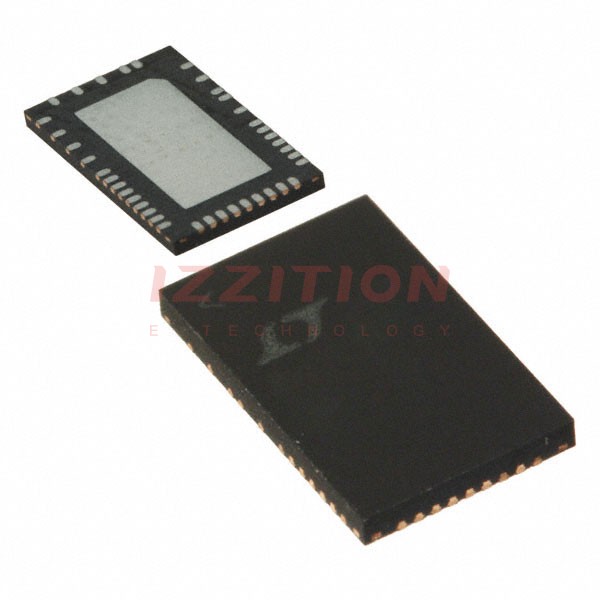

| Part Number | LT3596IUHG#PBF | LT3597IUHG#PBF | LT3596EUHG#PBF |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Type | DC DC Regulator | DC DC Regulator | DC DC Regulator |
| Topology | Step-Down (Buck) | Step-Down (Buck) | Step-Down (Buck) |
| Internal Switch(s) | Yes | Yes | Yes |
| Number of Outputs | 3 | 3 | 3 |
| Voltage - Supply (Min) | 6V | 6V | 6V |
| Voltage - Supply (Max) | 55V | 55V | 55V |
| Voltage - Output | - | - | - |
| Current - Output / Channel | 100mA | 100mA | 100mA |
| Frequency | 200kHz ~ 1MHz | 200kHz ~ 1MHz | 200kHz ~ 1MHz |
| Dimming | PWM | PWM | PWM |
| Applications | Backlight, Signage | Backlight | Backlight, Signage |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 52-WFQFN, 39 Leads, Exposed Pad | 52-WFQFN, 39 Leads, Exposed Pad | 52-WFQFN, 39 Leads, Exposed Pad |
| Supplier Device Package | 52-QFN (5x8) | 52-QFN (5x8) | 52-QFN (5x8) |
