Please send RFQ , we will respond immediately.

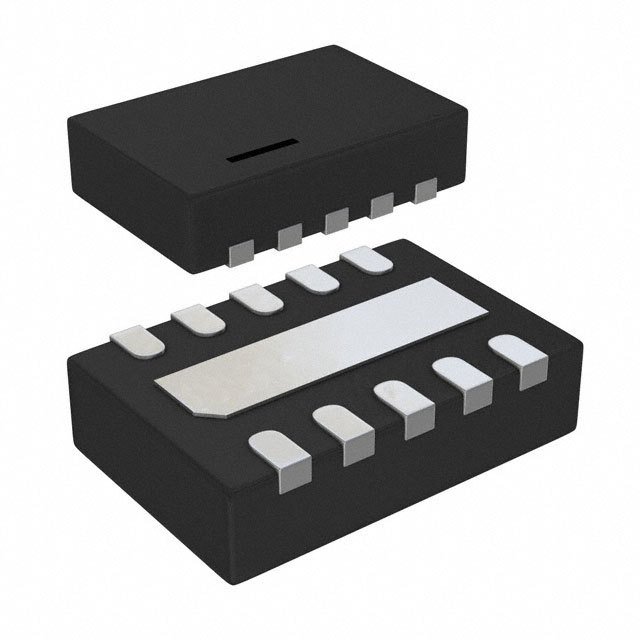

| Part Number | LT3592EDDB#TRMPBF | LT3592EDDB#TRPBF | LT3592IDDB#TRMPBF | LT3591EDDB#TRMPBF |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Type | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Regulator |
| Topology | Step-Down (Buck) | Step-Down (Buck) | Step-Down (Buck) | Step-Up (Boost) |
| Internal Switch(s) | Yes | Yes | Yes | Yes |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Supply (Min) | 3.6V | 3.6V | 3.6V | 2.5V |
| Voltage - Supply (Max) | 36V | 36V | 36V | 12V |
| Voltage - Output | 30V | 30V | 30V | - |
| Current - Output / Channel | 50mA, 500mA | 50mA, 500mA | 50mA, 500mA | 500mA (Switch) |
| Frequency | 400kHz ~ 2.2MHz | 400kHz ~ 2.2MHz | 400kHz ~ 2.2MHz | 1MHz |
| Dimming | - | - | - | PWM |
| Applications | Lighting | Lighting | Lighting | Backlight |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 8-WFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x2) | 10-DFN (3x2) | 10-DFN (3x2) | 8-DFN (3x2) |
