| Part Number | LT3511HMS#TRPBF | LT3511IMS#TRPBF | LT3512HMS#TRPBF | LT3511EMS#TRPBF |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Function | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down |
| Output Configuration | Positive or Negative, Isolation Capable | Positive or Negative, Isolation Capable | Positive or Negative, Isolation Capable | Positive or Negative, Isolation Capable |
| Topology | Flyback | Flyback | Flyback | Flyback |
| Output Type | - | - | - | - |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 4.5V | 4.5V | 4.5V | 4.5V |
| Voltage - Input (Max) | 100V | 100V | 100V | 100V |
| Voltage - Output (Min/Fixed) | - | - | - | - |
| Voltage - Output (Max) | - | - | - | - |
| Current - Output | 240mA | 240mA | 420mA | 240mA |
| Frequency - Switching | 40kHz ~ 650kHz | 40kHz ~ 650kHz | 40kHz ~ 650kHz | 40kHz ~ 650kHz |
| Synchronous Rectifier | No | No | No | No |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

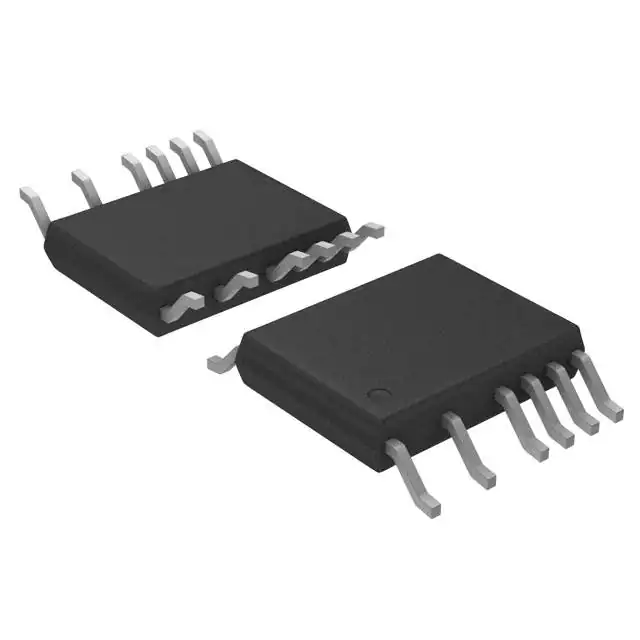

| Package / Case | 16-TFSOP (0.118", 3.00mm Width), 12 Leads | 16-TFSOP (0.118", 3.00mm Width), 12 Leads | 16-TFSOP (0.118", 3.00mm Width), 12 Leads | 16-TFSOP (0.118", 3.00mm Width), 12 Leads |
| Supplier Device Package | 16-MSOP | 16-MSOP | 16-MSOP | 16-MSOP |
