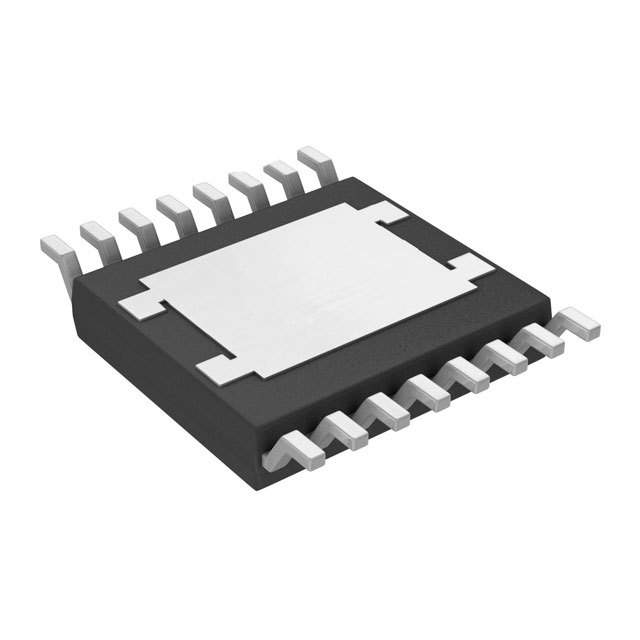

| Part Number | LT3466EFE#TRPBF | LT3486EFE#TRPBF | LT3496EFE#TRPBF |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Type | DC DC Regulator | DC DC Regulator | DC DC Regulator |
| Topology | Step-Up (Boost) | Step-Up (Boost) | Step-Down (Buck), Step-Up (Boost) |
| Internal Switch(s) | Yes | Yes | Yes |
| Number of Outputs | 2 | 2 | 3 |
| Voltage - Supply (Min) | 2.7V | 2.5V | 3V |
| Voltage - Supply (Max) | 24V | 24V | 30V |
| Voltage - Output | 39.5V | - | - |
| Current - Output / Channel | 400mA | 1.3A (Switch) | 1A (Switch) |
| Frequency | 1MHz | 2.2MHz | 330kHz ~ 2.1MHz |
| Dimming | PWM | PWM | Analog, PWM |
| Applications | Backlight | Backlight, Camera Flash | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 16-TSSOP-EP | 16-TSSOP-EP | 28-TSSOP-EP |
