Please send RFQ , we will respond immediately.

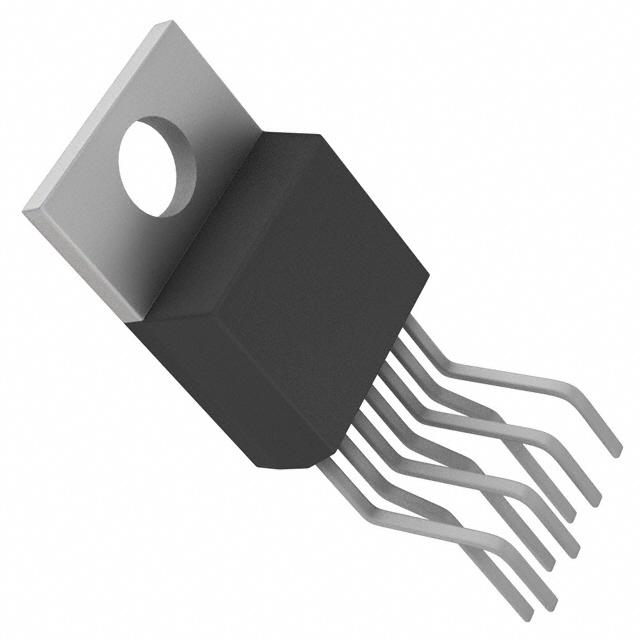

| Part Number | LT3091IT7#PBF | LT3091ET7#PBF | LT3091HT7#PBF |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Output Configuration | Negative | Negative | Negative |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | -36V | -36V | -36V |
| Voltage - Output (Min/Fixed) | 0V | 0V | 0V |
| Voltage - Output (Max) | -32V | -32V | -32V |
| Voltage Dropout (Max) | 0.525V @ 1.5A | 0.525V @ 1.5A | 0.525V @ 1.5A |
| Current - Output | 1.5A | 1.5A | 1.5A |
| Current - Quiescent (Iq) | 50.5 µA | 50.5 µA | 50.5 µA |
| Current - Supply (Max) | - | - | - |
| PSRR | 85dB ~ 20dB (120Hz ~ 1MHz) | 85dB ~ 20dB (120Hz ~ 1MHz) | 85dB ~ 20dB (120Hz ~ 1MHz) |
| Control Features | Current Limit, Enable | Current Limit, Enable | Current Limit, Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit | Over Current, Over Temperature, Reverse Polarity, Short Circuit | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 150°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-7 Formed Leads | TO-220-7 Formed Leads | TO-220-7 Formed Leads |
| Supplier Device Package | TO-220-7 | TO-220-7 | TO-220-7 |
