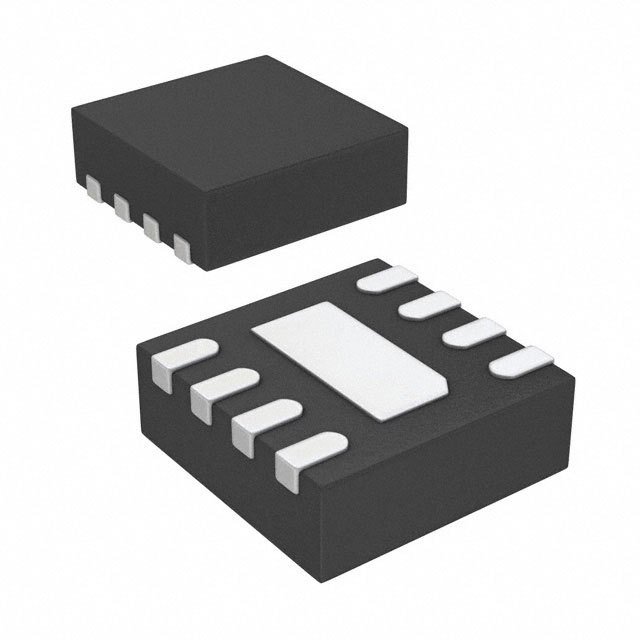

| Part Number | LT3060IDC-1.8#TRPBF | LT3060EDC-1.8#TRPBF | LT3060IDC-1.2#TRPBF | LT3060IDC-1.5#TRPBF | LT3060IDC-1.8#TRMPBF |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 45V | 45V | 45V | 45V | 45V |
| Voltage - Output (Min/Fixed) | 1.8V | 1.8V | 1.2V | 1.5V | 1.8V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | 0.51V @ 100mA | 0.51V @ 100mA | 0.51V @ 100mA | 0.51V @ 100mA | 0.51V @ 100mA |
| Current - Output | 100mA | 100mA | 100mA | 100mA | 100mA |
| Current - Quiescent (Iq) | 80 µA | 80 µA | 80 µA | 80 µA | 80 µA |
| Current - Supply (Max) | 4 mA | 4 mA | 4 mA | 4 mA | 4 mA |
| PSRR | 75dB (120Hz) | 75dB (120Hz) | 79dB (120Hz) | 77dB (120Hz) | 75dB (120Hz) |
| Control Features | Enable, Soft Start | Enable, Soft Start | Enable, Soft Start | Enable, Soft Start | Enable, Soft Start |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (2x2) | 8-DFN (2x2) | 8-DFN (2x2) | 8-DFN (2x2) | 8-DFN (2x2) |
