Please send RFQ , we will respond immediately.

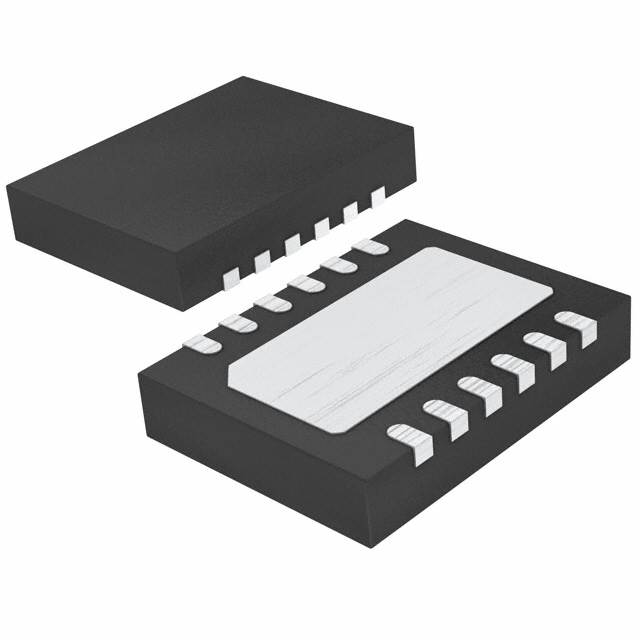

| Part Number | LT3050IDDB#TRPBF | LT3050EDDB#TRPBF | LT3050IDDB#TRMPBF |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 45V | 45V | 45V |
| Voltage - Output (Min/Fixed) | 0.6V | 0.6V | 0.6V |
| Voltage - Output (Max) | 44.5V | 44.5V | 44.5V |
| Voltage Dropout (Max) | 0.55V @ 100mA | 0.55V @ 100mA | 0.55V @ 100mA |
| Current - Output | 100mA | 100mA | 100mA |
| Current - Quiescent (Iq) | 90 µA | 90 µA | 90 µA |
| Current - Supply (Max) | 5.2 mA | 5.2 mA | 5.2 mA |
| PSRR | 85dB (120Hz) | 85dB (120Hz) | 85dB (120Hz) |
| Control Features | Current Limit, Enable, Soft Start | Current Limit, Enable, Soft Start | Current Limit, Enable, Soft Start |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 12-WFDFN Exposed Pad | 12-WFDFN Exposed Pad | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (3x2) | 12-DFN (3x2) | 12-DFN (3x2) |
