Please send RFQ , we will respond immediately.

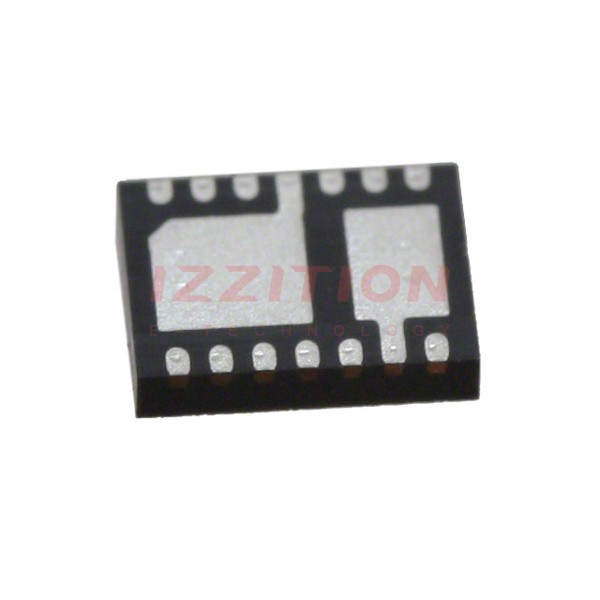

| Part Number | LT3032EDE-12#PBF | LT3032EDE-15#PBF | LT3032IDE-12#PBF |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Output Configuration | Positive and Negative | Positive and Negative | Positive and Negative |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 2 | 2 | 2 |
| Voltage - Input (Max) | ±20V | ±20V | ±20V |
| Voltage - Output (Min/Fixed) | ±12V | ±15V | ±12V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.27V @ 150mA (Typ), 0.3V @ 150mA (Typ) | 0.27V @ 150mA (Typ), 0.3V @ 150mA (Typ) | 0.27V @ 150mA (Typ), 0.3V @ 150mA (Typ) |
| Current - Output | 150mA, 150mA | 150mA, 150mA | 150mA, 150mA |
| Current - Quiescent (Iq) | - | - | - |
| Current - Supply (Max) | - | - | - |
| PSRR | 68dB (120Hz), 54dB (120Hz) | 68dB (120Hz), 54dB (120Hz) | 68dB (120Hz), 54dB (120Hz) |
| Control Features | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 14-PowerWFDFN | 14-PowerWFDFN | 14-PowerWFDFN |
| Supplier Device Package | 14-DFN (4x3) | 14-DFN (4x3) | 14-DFN (4x3) |
