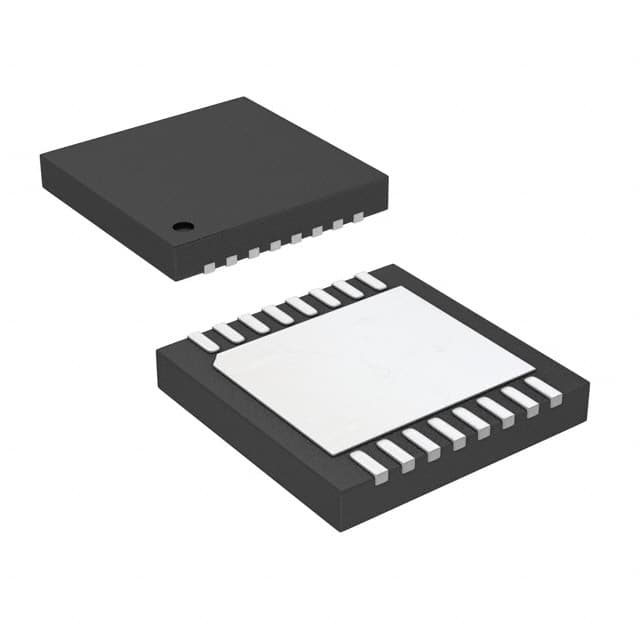

| Part Number | LT3021EDH-1.5#PBF | LT3021EDH-1.8#PBF | LT3021EDH-1.2#PBF |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 10V | 10V | 10V |
| Voltage - Output (Min/Fixed) | 1.5V | 1.8V | 1.2V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.285V @ 500mA | 0.285V @ 500mA | 0.285V @ 500mA |
| Current - Output | 500mA | 500mA | 500mA |
| Current - Quiescent (Iq) | 250 µA | 250 µA | 250 µA |
| Current - Supply (Max) | 10 mA | 10 mA | 10 mA |
| PSRR | 58dB (120Hz) | 56dB (120Hz) | 60dB (120Hz) |
| Control Features | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-WFDFN Exposed Pad | 16-WFDFN Exposed Pad | 16-WFDFN Exposed Pad |
| Supplier Device Package | 16-DFN (5x5) | 16-DFN (5x5) | 16-DFN (5x5) |
