| Part Number | LT3012EFE#TRPBF | LT3012HFE#TRPBF | LT3013EFE#TRPBF | LT3012BEFE#TRPBF | LT3012EDE#TRPBF |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 80V | 80V | 80V | 80V | 80V |
| Voltage - Output (Min/Fixed) | 1.24V | 1.24V | 1.24V | 1.24V | 1.24V |
| Voltage - Output (Max) | 60V | 60V | 60V | 60V | 60V |
| Voltage Dropout (Max) | 0.62V @ 250mA | 0.63V @ 200mA | 0.62V @ 250mA | 0.62V @ 250mA | 0.62V @ 250mA |
| Current - Output | 250mA | 200mA | 250mA | 250mA | 250mA |
| Current - Quiescent (Iq) | 100 µA | 110 µA | 120 µA | 100 µA | 100 µA |
| Current - Supply (Max) | 18 mA | 18 mA | 18 mA | 18 mA | 18 mA |
| PSRR | 75dB (120Hz) | 75dB (120Hz) | 75dB (120Hz) | 75dB (120Hz) | 75dB (120Hz) |
| Control Features | Enable | Enable | Enable, Frequency Control, Power Good | - | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 140°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

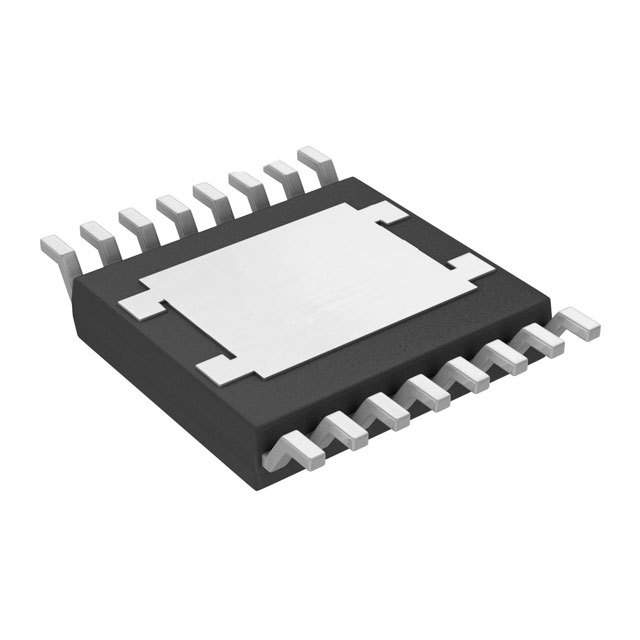

| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 12-WFDFN Exposed Pad |
| Supplier Device Package | 16-TSSOP-EP | 16-TSSOP-EP | 16-TSSOP-EP | 16-TSSOP-EP | 12-DFN (4x3) |
