LT3009ESC8#TRMPBF
  • Share:

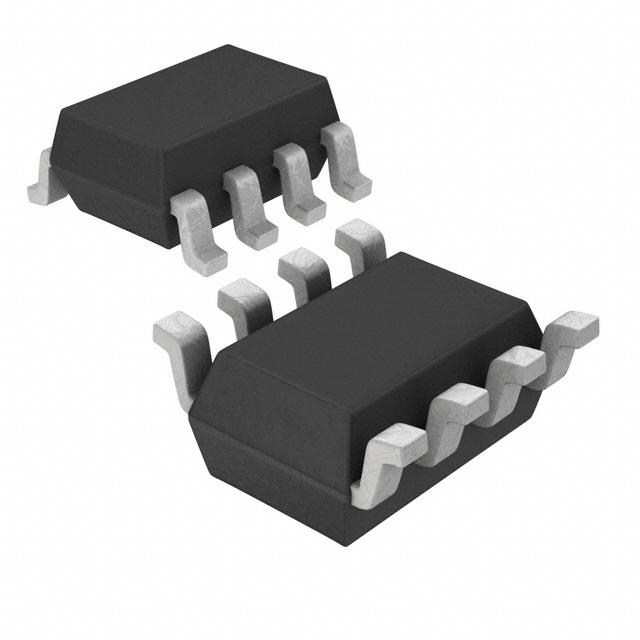

Analog Devices Inc. LT3009ESC8#TRMPBF

Manufacturer No:
LT3009ESC8#TRMPBF
Manufacturer:
Analog Devices Inc.
Package:
Tape & Reel (TR)
Datasheet:
LT3009ESC8#TRMPBF Datasheet
ECAD Model:
-
Description:
IC REG LIN POS ADJ 20MA SC70-8
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Output Configuration:Positive
Output Type:Adjustable
Number of Regulators:1
Voltage - Input (Max):20V
Voltage - Output (Min/Fixed):0.6V
Voltage - Output (Max):19.55V
Voltage Dropout (Max):0.45V @ 20mA
Current - Output:20mA
Current - Quiescent (Iq):6 µA
Current - Supply (Max):1 mA
PSRR:72dB (120Hz)
Control Features:Enable
Protection Features:Over Current, Over Temperature, Reverse Polarity
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:8-VFSOP (0.049", 1.25mm Width)
Supplier Device Package:SC-70-8
0 Remaining View Similar

In Stock

$2.90
117

Please send RFQ , we will respond immediately.

Similar Products

Part Number LT3009ESC8#TRMPBF LT3009ESC8#TRPBF
Manufacturer Analog Devices Inc. Analog Devices Inc.
Product Status Active Active
Output Configuration Positive Positive
Output Type Adjustable Adjustable
Number of Regulators 1 1
Voltage - Input (Max) 20V 20V
Voltage - Output (Min/Fixed) 0.6V 0.6V
Voltage - Output (Max) 19.55V 19.55V
Voltage Dropout (Max) 0.45V @ 20mA 0.45V @ 20mA
Current - Output 20mA 20mA
Current - Quiescent (Iq) 6 µA 6 µA
Current - Supply (Max) 1 mA 1 mA
PSRR 72dB (120Hz) 72dB (120Hz)
Control Features Enable Enable
Protection Features Over Current, Over Temperature, Reverse Polarity Over Current, Over Temperature, Reverse Polarity
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C
Mounting Type Surface Mount Surface Mount
Package / Case 8-VFSOP (0.049", 1.25mm Width) 8-VFSOP (0.049", 1.25mm Width)
Supplier Device Package SC-70-8 SC-70-8
