| Part Number | LT3009EDC-1.2#TRPBF | LT3009EDC-1.8#TRPBF | LT3009EDC-1.5#TRPBF | LT3009IDC-1.2#TRPBF | LT3008EDC-1.2#TRPBF | LT3009EDC-1.2#TRMPBF |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 20V | 20V | 20V | 20V | 45V | 20V |
| Voltage - Output (Min/Fixed) | 1.2V | 1.8V | 1.5V | 1.2V | 1.2V | 1.2V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.45V @ 20mA | 0.45V @ 20mA | 0.45V @ 20mA | 0.45V @ 20mA | 0.5V @ 20mA | 0.45V @ 20mA |
| Current - Output | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Current - Quiescent (Iq) | 6 µA | 6 µA | 6 µA | 6 µA | 6 µA | 6 µA |
| Current - Supply (Max) | 1 mA | 1 mA | 1 mA | 1 mA | 1.2 mA | 1 mA |
| PSRR | 68dB (120Hz) | 66dB (120Hz) | 67dB (120Hz) | 68dB (120Hz) | 66dB (120Hz) | 68dB (120Hz) |
| Control Features | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

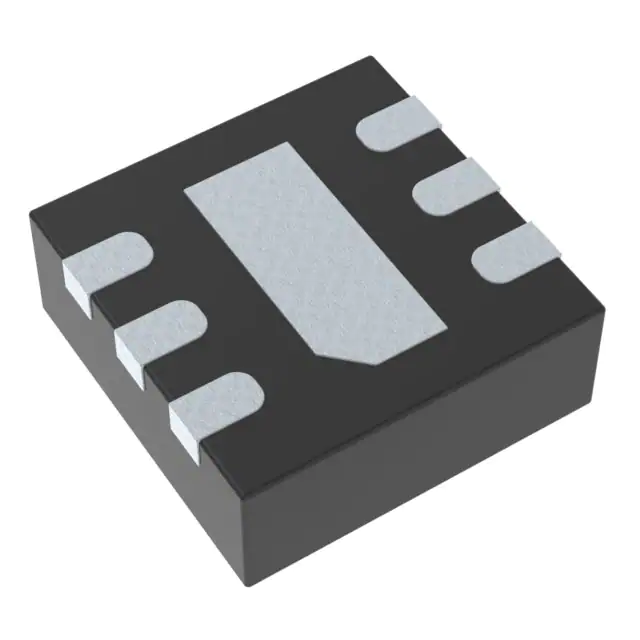

| Package / Case | 6-WFDFN Exposed Pad | 6-WFDFN Exposed Pad | 6-WFDFN Exposed Pad | 6-WFDFN Exposed Pad | 6-WFDFN Exposed Pad | 6-WFDFN Exposed Pad |
| Supplier Device Package | 6-DFN (2x2) | 6-DFN (2x2) | 6-DFN (2x2) | 6-DFN (2x2) | 6-DFN (2x2) | 6-DFN (2x2) |
