LT1963ET#30PBF
  • Share:

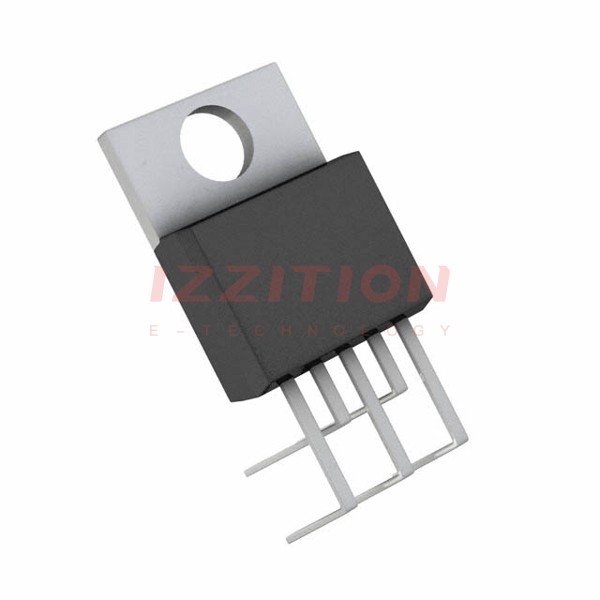

Analog Devices Inc. LT1963ET#30PBF

Manufacturer No:
LT1963ET#30PBF
Manufacturer:
Analog Devices Inc.
Package:
Tube
Datasheet:
LT1963ET#30PBF Datasheet
ECAD Model:
-
Description:
IC REG LIN POS ADJ 1.5A TO220-5
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Output Configuration:Positive
Output Type:Adjustable
Number of Regulators:1
Voltage - Input (Max):20V
Voltage - Output (Min/Fixed):1.21V
Voltage - Output (Max):20V
Voltage Dropout (Max):0.55V @ 1.5A
Current - Output:1.5A
Current - Quiescent (Iq):1.5 mA
Current - Supply (Max):120 mA
PSRR:63dB (120Hz)
Control Features:Enable
Protection Features:Over Current, Over Temperature, Reverse Polarity
Operating Temperature:-40°C ~ 125°C
Mounting Type:Through Hole
Package / Case:TO-220-5 Formed Leads
Supplier Device Package:TO-220-5 Flow 30
0 Remaining View Similar

In Stock

$4.75
54

Please send RFQ , we will respond immediately.

Similar Products

Part Number LT1963ET#30PBF LT1963ET#31PBF
Manufacturer Analog Devices Inc. Analog Devices Inc.
Product Status Active Active
Output Configuration Positive Positive
Output Type Adjustable Adjustable
Number of Regulators 1 1
Voltage - Input (Max) 20V 20V
Voltage - Output (Min/Fixed) 1.21V 1.21V
Voltage - Output (Max) 20V 20V
Voltage Dropout (Max) 0.55V @ 1.5A 0.55V @ 1.5A
Current - Output 1.5A 1.5A
Current - Quiescent (Iq) 1.5 mA 1.5 mA
Current - Supply (Max) 120 mA 120 mA
PSRR 63dB (120Hz) 63dB (120Hz)
Control Features Enable Enable
Protection Features Over Current, Over Temperature, Reverse Polarity Over Current, Over Temperature, Reverse Polarity
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C
Mounting Type Through Hole Through Hole
Package / Case TO-220-5 Formed Leads TO-220-5 Formed Leads
Supplier Device Package TO-220-5 Flow 30 TO-220-5 Flow 31
