| Part Number | LT1764ET#30PBF | LT1764ET#31PBF | LT1764AET#30PBF |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 20V | 20V | 20V |
| Voltage - Output (Min/Fixed) | 1.21V | 1.21V | 1.21V |
| Voltage - Output (Max) | 20V | 20V | 20V |
| Voltage Dropout (Max) | 0.45V @ 3A | 0.45V @ 3A | 0.66V @ 3A |
| Current - Output | 3A | 3A | 3A |
| Current - Quiescent (Iq) | 5 mA | 5 mA | 1.5 mA |
| Current - Supply (Max) | 200 mA | 200 mA | 200 mA |
| PSRR | 63dB (120Hz) | 63dB (120Hz) | 63dB (120Hz) |
| Control Features | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |

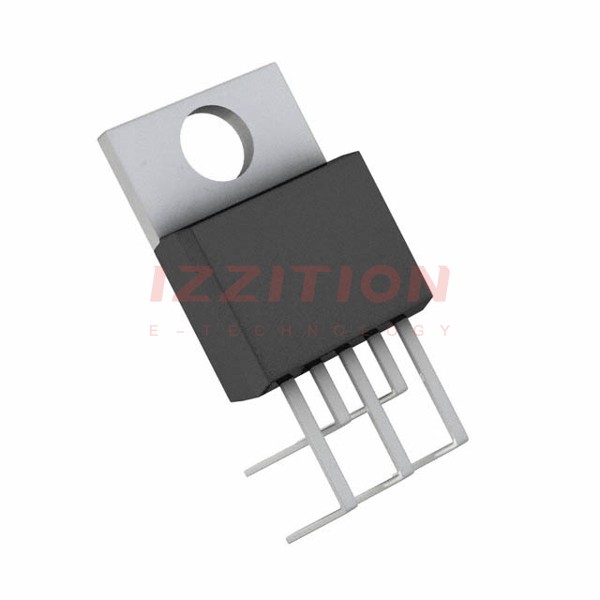

| Package / Case | TO-220-5 Formed Leads | TO-220-5 Formed Leads | TO-220-5 Formed Leads |
| Supplier Device Package | TO-220-5 Flow 30 | TO-220-5 Flow 31 | TO-220-5 Flow 30 |
