LT1764AET#31PBF
  • Share:

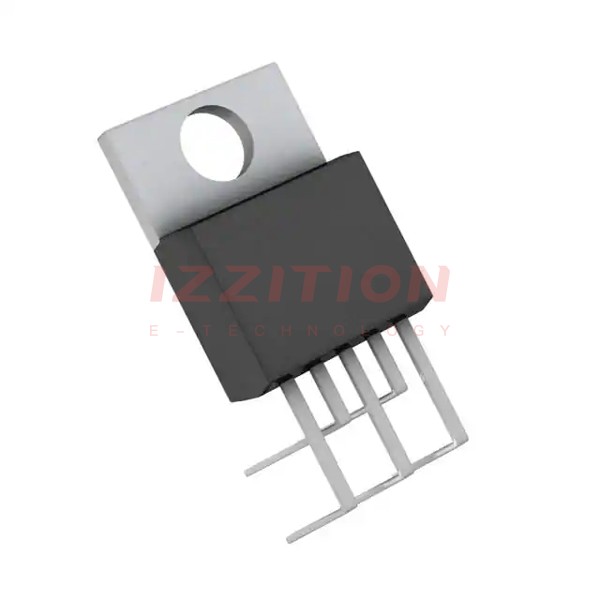

Analog Devices Inc. LT1764AET#31PBF

Manufacturer No:
LT1764AET#31PBF
Manufacturer:
Analog Devices Inc.
Package:
Tube
Datasheet:
LT1764AET#31PBF Datasheet
ECAD Model:
-
Description:
IC REG LIN POS ADJ 3A TO220-5
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Output Configuration:Positive
Output Type:Adjustable
Number of Regulators:1
Voltage - Input (Max):20V
Voltage - Output (Min/Fixed):1.21V
Voltage - Output (Max):20V
Voltage Dropout (Max):0.66V @ 3A
Current - Output:3A
Current - Quiescent (Iq):1.5 mA
Current - Supply (Max):200 mA
PSRR:63dB (120Hz)
Control Features:Enable
Protection Features:Over Current, Over Temperature, Reverse Polarity
Operating Temperature:-40°C ~ 125°C
Mounting Type:Through Hole
Package / Case:TO-220-5 Formed Leads
Supplier Device Package:TO-220-5 Flow 31
0 Remaining View Similar

In Stock

$5.71
170

Please send RFQ , we will respond immediately.

Similar Products

Part Number LT1764AET#31PBF LT1764ET#31PBF   LT1764AET#33PBF   LT1764AET#30PBF
Manufacturer Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc.
Product Status Active Active Discontinued at Digi-Key Active
Output Configuration Positive Positive Positive Positive
Output Type Adjustable Adjustable Adjustable Adjustable
Number of Regulators 1 1 1 1
Voltage - Input (Max) 20V 20V 20V 20V
Voltage - Output (Min/Fixed) 1.21V 1.21V 1.21V 1.21V
Voltage - Output (Max) 20V 20V 20V 20V
Voltage Dropout (Max) 0.66V @ 3A 0.45V @ 3A 0.66V @ 3A 0.66V @ 3A
Current - Output 3A 3A 3A 3A
Current - Quiescent (Iq) 1.5 mA 5 mA 1.5 mA 1.5 mA
Current - Supply (Max) 200 mA 200 mA 200 mA 200 mA
PSRR 63dB (120Hz) 63dB (120Hz) 63dB (120Hz) 63dB (120Hz)
Control Features Enable Enable Enable Enable
Protection Features Over Current, Over Temperature, Reverse Polarity Over Current, Over Temperature, Reverse Polarity Over Current, Over Temperature, Reverse Polarity Over Current, Over Temperature, Reverse Polarity
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C
Mounting Type Through Hole Through Hole Through Hole Through Hole
Package / Case TO-220-5 Formed Leads TO-220-5 Formed Leads TO-220-5 Formed Leads TO-220-5 Formed Leads
Supplier Device Package TO-220-5 Flow 31 TO-220-5 Flow 31 TO-220-5 Flow 33 TO-220-5 Flow 30
