Please send RFQ , we will respond immediately.

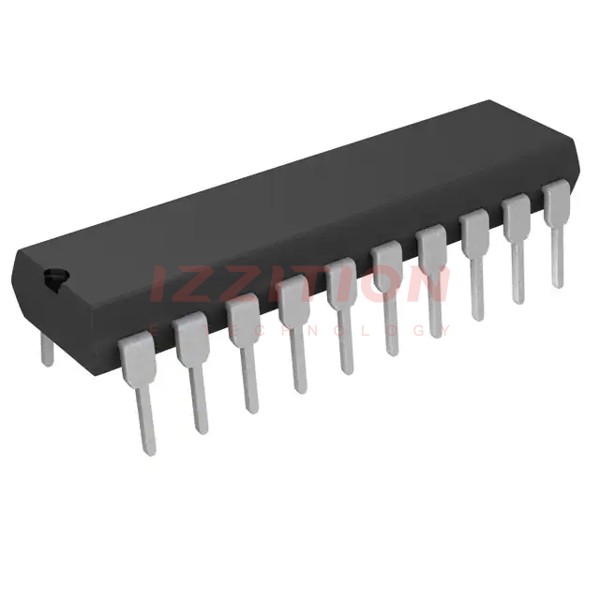

| Part Number | LT1161IN#PBF | LT1162IN#PBF | LT1160IN#PBF | LT1161CN#PBF |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Obsolete | Active | Active |
| Driven Configuration | High-Side | Half-Bridge | Half-Bridge | High-Side |
| Channel Type | Independent | Independent | Independent | Independent |
| Number of Drivers | 4 | 4 | 2 | 4 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 8V ~ 48V | 10V ~ 15V | 10V ~ 15V | 8V ~ 48V |
| Logic Voltage - VIL, VIH | 0.8V, 2V | 0.8V, 2V | 0.8V, 2V | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | - | 1.5A, 1.5A | 1.5A, 1.5A | - |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | 60 V | 60 V | - |
| Rise / Fall Time (Typ) | - | 130ns, 60ns | 130ns, 60ns | - |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | 0°C ~ 125°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 20-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP | 24-PDIP | 14-PDIP | 20-PDIP |
