Please send RFQ , we will respond immediately.

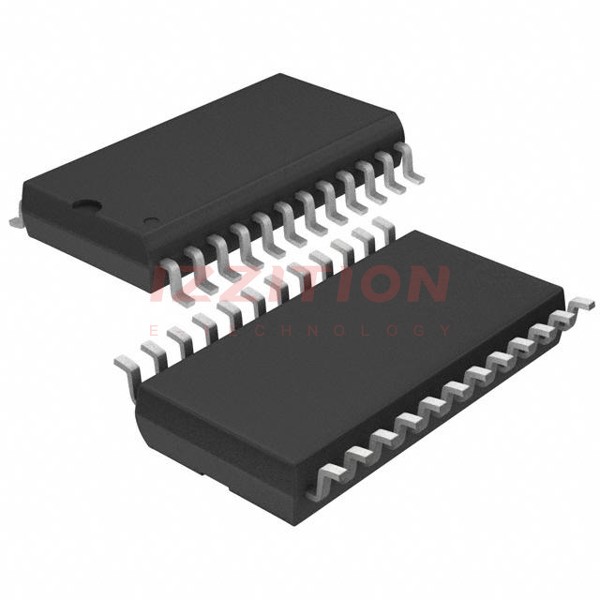

| Part Number | LT1139ACSW#TRPBF | LT1039ACSW#TRPBF | LT1130ACSW#TRPBF | LT1131ACSW#TRPBF | LT1132ACSW#TRPBF | LT1133ACSW#TRPBF | LT1134ACSW#TRPBF | LT1135ACSW#TRPBF | LT1136ACSW#TRPBF | LT1137ACSW#TRPBF | LT1138ACSW#TRPBF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Transceiver | Transceiver | Transceiver | Transceiver | Transceiver | Transceiver | Transceiver | Transceiver | Transceiver | Transceiver | Transceiver |
| Protocol | RS232 | RS232 | RS232 | RS232 | RS232 | RS232 | RS232 | RS232 | RS232 | RS232 | RS232 |
| Number of Drivers/Receivers | 4/4 | 3/3 | 5/5 | 5/4 | 5/3 | 3/5 | 4/4 | 5/3 | 4/5 | 3/5 | 5/3 |
| Duplex | Full | Full | Full | Full | Full | Full | Full | Full | Full | Full | Full |
| Receiver Hysteresis | 400 mV | 400 mV | 400 mV | 400 mV | 400 mV | 400 mV | 400 mV | 400 mV | 400 mV | 400 mV | 400 mV |
| Data Rate | 250KBd | - | 250KBd | 250KBd | 250KBd | 250KBd | 250KBd | 250KBd | 250KBd | 250KBd | 250KBd |
| Voltage - Supply | 4.5V ~ 5.5V | 5V ~ 15V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) | 18-SOIC (0.295", 7.50mm Width) | 28-SOIC (0.295", 7.50mm Width) | 28-SOIC (0.295", 7.50mm Width) | 24-SOIC (0.295", 7.50mm Width) | 24-SOIC (0.295", 7.50mm Width) | 24-SOIC (0.295", 7.50mm Width) | 20-SOIC (0.295", 7.50mm Width) | 28-SOIC (0.295", 7.50mm Width) | 28-SOIC (0.295", 7.50mm Width) | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC | 18-SO | 28-SOIC | 28-SOIC | 24-SOIC | 24-SOIC | 24-SOIC | 20-SO | 28-SOIC | 28-SOIC | 28-SOIC |
