Please send RFQ , we will respond immediately.

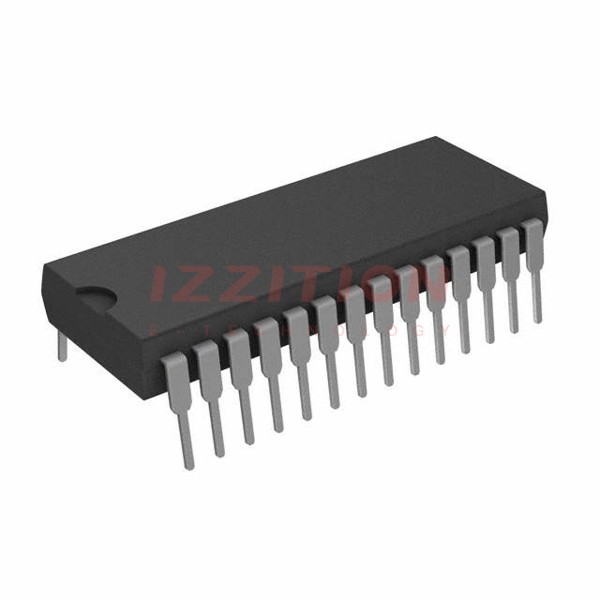

| Part Number | LT1136ACNW#PBF | LT1137ACNW#PBF | LT1138ACNW#PBF | LT1136ACSW#PBF | LT1130ACNW#PBF | LT1131ACNW#PBF |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Linear Technology | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Transceiver | Transceiver | Transceiver | Transceiver | - | Transceiver |
| Protocol | RS232 | RS232 | RS232 | RS232 | - | RS232 |
| Number of Drivers/Receivers | 4/5 | 3/5 | 5/3 | 4/5 | - | 5/3 |
| Duplex | Full | Full | Full | Full | - | Full |
| Receiver Hysteresis | 400 mV | 400 mV | 400 mV | 400 mV | - | 400 mV |
| Data Rate | 250KBd | 250KBd | 250KBd | 250KBd | - | 250KBd |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | - | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | - | 0°C ~ 70°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Surface Mount | - | Through Hole |
| Package / Case | 28-DIP (0.600", 15.24mm) | 28-DIP (0.600", 15.24mm) | 28-DIP (0.600", 15.24mm) | 28-SOIC (0.295", 7.50mm Width) | - | 28-DIP (0.600", 15.24mm) |
| Supplier Device Package | 28-PDIP | 28-PDIP | 28-PDIP | 28-SOIC | - | 28-PDIP |
