Please send RFQ , we will respond immediately.

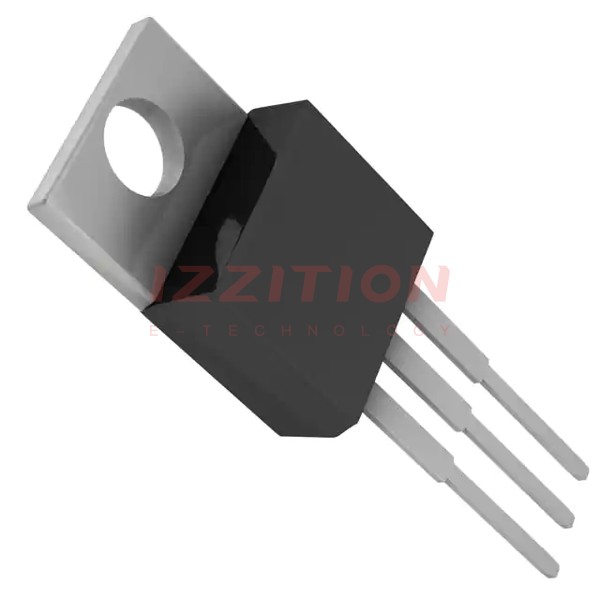

| Part Number | LT1086CT#PBF | LT1086IT#PBF | LT1036CT#PBF | LT1084CT#PBF | LT1085CT#PBF | LT1086CM#PBF |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Obsolete | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Adjustable | Adjustable | Fixed | Adjustable | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 | 2 | 1 | 1 | 1 |
| Voltage - Input (Max) | 25V | 25V | 30V | 30V | 30V | 25V |
| Voltage - Output (Min/Fixed) | 1.25V | 1.25V | 12V, 5V | 1.25V | 1.25V | 1.25V |
| Voltage - Output (Max) | 23.5V | 23.5V | - | 28.5V | 28.5V | 23.5V |
| Voltage Dropout (Max) | 1.5V @ 1.5A | 1.5V @ 1.5A | 15V @ 3A, 7.2V @ 75mA (Typ) | 1.5V @ 5A | 1.5V @ 3A | 1.5V @ 1.5A |
| Current - Output | 1.5A | 1.5A | 3A, 75mA | 5A | 3A | 1.5A |
| Current - Quiescent (Iq) | - | - | 4.5 mA | - | - | - |
| Current - Supply (Max) | - | - | 5.5 mA | - | - | - |
| PSRR | 75dB (120Hz) | 75dB (120Hz) | 60dB (50Hz ~ 500Hz), 74dB (50Hz ~ 500Hz) | 75dB (120Hz) | 75dB (120Hz) | 75dB (120Hz) |
| Control Features | - | - | Enable | - | - | - |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature, Over Voltage | Over Temperature | Over Temperature | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 125°C | -40°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount |
| Package / Case | TO-220-3 | TO-220-3 | TO-220-5 | TO-220-3 | TO-220-3 | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA |
| Supplier Device Package | TO-220-3 | TO-220-3 | TO-220-5 | TO-220-3 | TO-220-3 | 3-DDPAK |
