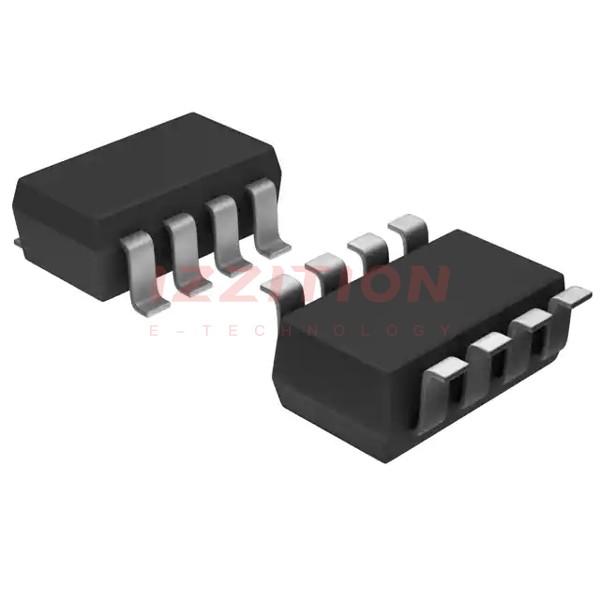

| Part Number | LMX393HAKA+T | LMX393HAUA+T | LMX393AKA+T |
|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | General Purpose | General Purpose | General Purpose |
| Number of Elements | 2 | 2 | 2 |
| Output Type | Open Drain | Open Drain | Open Drain |
| Voltage - Supply, Single/Dual (±) | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Voltage - Input Offset (Max) | 7mV @ 5V | 7mV @ 5V | 7mV @ 5V |
| Current - Input Bias (Max) | 0.25µA @ 5V | 0.25µA @ 5V | 0.25µA @ 5V |
| Current - Output (Typ) | 73mA @ 5V | 73mA @ 5V | 73mA @ 5V |
| Current - Quiescent (Max) | 200µA | 200µA | 200µA |
| CMRR, PSRR (Typ) | 70dB PSRR | 70dB PSRR | 70dB PSRR |
| Propagation Delay (Max) | 600ns | 600ns | 600ns |
| Hysteresis | 2mV | 2mV | 2mV |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Package / Case | SOT-23-8 | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | SOT-23-8 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SOT-23-8 | 8-uMAX/uSOP | SOT-23-8 |
