| Part Number | LM329AZ#PBF | LM329BZ#PBF | LM329CZ#PBF | LM329DZ#PBF |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Obsolete |
| Reference Type | Shunt, Buried Zener | Shunt, Buried Zener | Shunt, Buried Zener | Shunt, Buried Zener |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Voltage - Output (Min/Fixed) | 6.9V | 6.9V | 6.9V | 6.9V |
| Voltage - Output (Max) | - | - | - | - |
| Current - Output | 15 mA | 15 mA | 15 mA | 15 mA |
| Tolerance | ±0.29% | ±0.29% | ±0.29% | ±0.29% |
| Temperature Coefficient | 10ppm/°C | 20ppm/°C | 50ppm/°C | 100ppm/°C |
| Noise - 0.1Hz to 10Hz | - | - | - | - |
| Noise - 10Hz to 10kHz | 100µVrms | 100µVrms | 100µVrms | 100µVrms |
| Voltage - Input | - | - | - | - |
| Current - Supply | - | - | - | - |
| Current - Cathode | 600 µA | 600 µA | 600 µA | 600 µA |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |

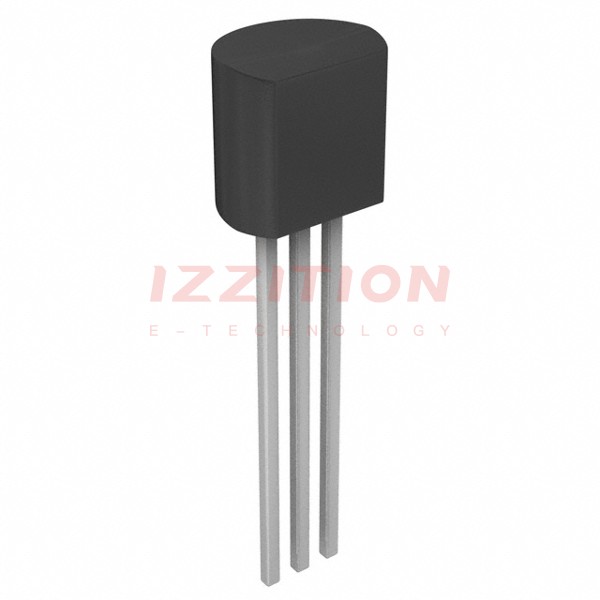

| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) |
| Supplier Device Package | TO-92-3 | TO-92-3 | TO-92-3 | TO-92-3 |
