| Part Number | JM38510/11402BGA | JM38510/11403BGA | JM38510/11406BGA | JM38510/11405BGA | JM38510/11402BPA |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Amplifier Type | J-FET | J-FET | J-FET | J-FET | J-FET |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 |
| Output Type | - | - | - | - | - |
| Slew Rate | 7.5V/µs | 30V/µs | 45V/µs | 10V/µs | 7.5V/µs |
| Gain Bandwidth Product | 5 MHz | - | 20 MHz | - | - |
| -3db Bandwidth | - | - | - | - | - |
| Current - Input Bias | 60 nA | 100 pA | 30 nA | 100 pA | 100 pA |
| Voltage - Input Offset | 7 mV | 5 mV | 1 mV | 2 mV | 5 mV |
| Current - Supply | - | - | 5mA | - | - |
| Current - Output / Channel | 50 mA | 50 mA | - | 50 mA | 50 mA |
| Voltage - Supply Span (Min) | 10 V | 10 V | 30 V | 10 V | 10 V |
| Voltage - Supply Span (Max) | 40 V | 40 V | 40 V | 40 V | 40 V |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

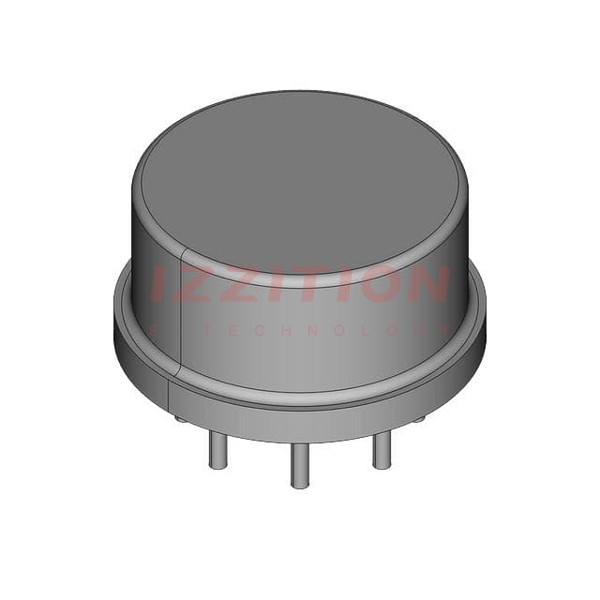

| Package / Case | TO-99-8 Metal Can | TO-99-8 Metal Can | TO-99-8 Metal Can | TO-99-8 Metal Can | 8-CDIP (0.300", 7.62mm) |
| Supplier Device Package | TO-99-8 | TO-99 | TO-99-8 | TO-99-8 | 8-CERDIP |
