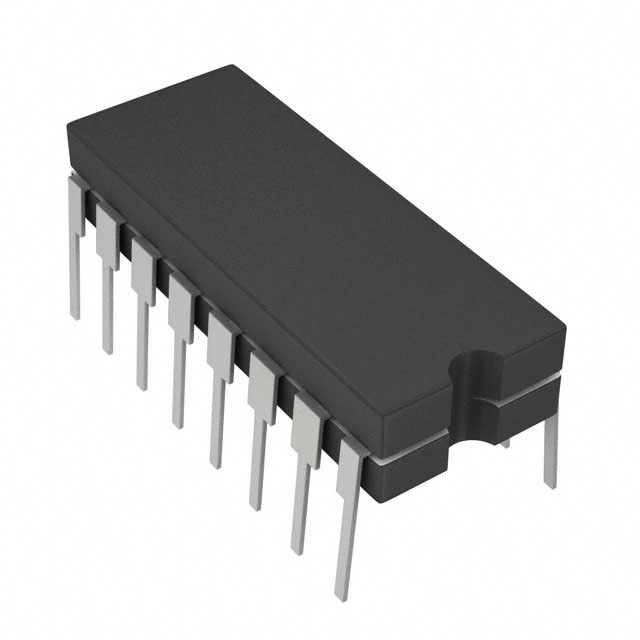

| Part Number | IH5045MJE/883B | IH5049MJE/883B | IH5043MJE/883B |
|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete | Obsolete |
| Switch Circuit | DPST - NO | SPST - NO | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 1:1 | 2:1 |
| Number of Circuits | 2 | 2 | 2 |
| On-State Resistance (Max) | 75Ohm | 60Ohm | 75Ohm |
| Channel-to-Channel Matching (ΔRon) | 3Ohm | 8Ohm | 3Ohm |
| Voltage - Supply, Single (V+) | - | - | - |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 18V | ±4.5V ~ 20V | ±4.5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 400ns, 200ns | 400ns, 200ns (Typ) | 400ns, 200ns |
| -3db Bandwidth | - | - | - |
| Charge Injection | - | 10pC | - |
| Channel Capacitance (CS(off), CD(off)) | - | - | - |
| Current - Leakage (IS(off)) (Max) | 1nA | 100nA | 1nA |
| Crosstalk | - | - | - |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CDIP | 16-CDIP | 16-CDIP |
