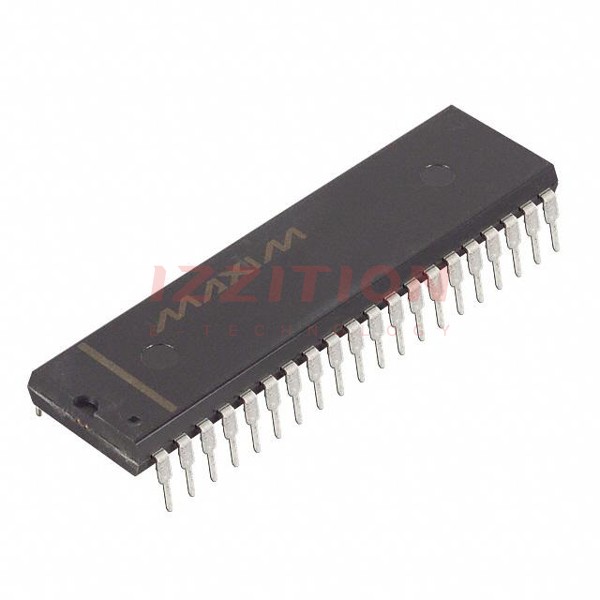

| Part Number | ICL7109IPL+ | ICL7109CPL+ | ICL7109EPL+ |
|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active |
| Number of Bits | 12 | 12 | 12 |
| Sampling Rate (Per Second) | 30 | 30 | 30 |
| Number of Inputs | 1 | 1 | 1 |
| Input Type | Differential | Differential | Differential |
| Data Interface | Parallel | Parallel | Parallel |
| Configuration | ADC | ADC | ADC |
| Ratio - S/H:ADC | - | - | - |
| Number of A/D Converters | 1 | 1 | 1 |
| Architecture | Dual Slope | Dual Slope | Dual Slope |
| Reference Type | External | External | External |
| Voltage - Supply, Analog | ±5V | ±5V | ±5V |
| Voltage - Supply, Digital | ±5V | ±5V | ±5V |
| Features | - | - | - |
| Operating Temperature | -20°C ~ 85°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Package / Case | 40-DIP (0.600", 15.24mm) | 40-DIP (0.600", 15.24mm) | 40-DIP (0.600", 15.24mm) |
| Supplier Device Package | 40-PDIP | 40-PDIP | 40-PDIP |
| Mounting Type | Through Hole | Through Hole | Through Hole |
