Please send RFQ , we will respond immediately.
| Part Number | HMC685LP4E | HMC689LP4E | HMC687LP4E | HMC688LP4E | HMC615LP4E | HMC665LP4E | HMC684LP4E |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| RF Type | LTE, WiMax | LTE, WiMax | LTE, WiMax | LTE, WiMax | WiMAX / WiBro | LTE, WiMax | LTE, WiMax |
| Frequency | 1.7GHz ~ 2.2GHz | 2GHz ~ 2.7GHz | 1.7GHz ~ 2.2GHz | 2GHz ~ 2.7GHz | 2.3GHz ~ 4GHz | 700MHz ~ 1.2GHz | 700MHz ~ 1GHz |
| Number of Mixers | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Gain | - | - | - | - | - | 10dB | - |
| Noise Figure | 8dB | 7.5dB | 8dB | 8dB | 10dB | 10dB | 7dB |
| Secondary Attributes | Up/Down Converter | Up/Down Converter | Up/Down Converter | Up/Down Converter | Up/Down Converter | Up/Down Converter | Up/Down Converter |
| Current - Supply | 120mA | 152mA | 120mA | 140mA | 65mA | 150mA | 85mA |
| Voltage - Supply | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 5V | 5V | 4.75V ~ 5.25V |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

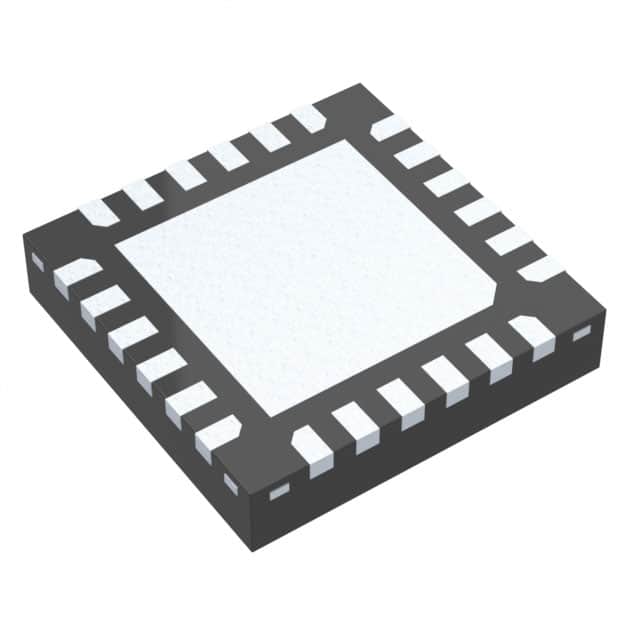

| Package / Case | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-QFN (4x4) | 24-QFN (4x4) | 24-QFN (4x4) | 24-QFN (4x4) | 24-QFN (4x4) | 24-QFN (4x4) | 24-QFN (4x4) |
