Please send RFQ , we will respond immediately.

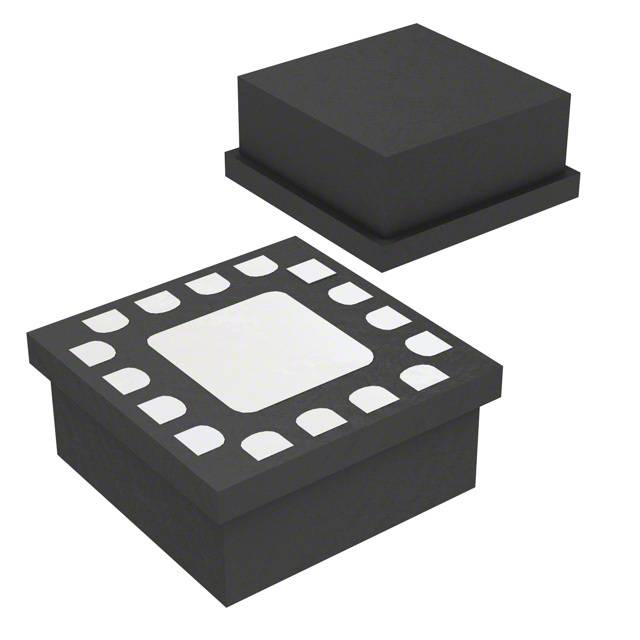

| Part Number | HMC674LC3CTR-R5 | HMC874LC3CTR-R5 | HMC675LC3CTR-R5 | HMC974LC3CTR-R5 | HMC676LC3CTR-R5 |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Obsolete |
| Type | General Purpose | General Purpose | General Purpose | Window | General Purpose |
| Number of Elements | 1 | 1 | 1 | 1 | 1 |
| Output Type | PECL | PECL | - | - | - |
| Voltage - Supply, Single/Dual (±) | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V |
| Voltage - Input Offset (Max) | 5mV | 5mV | 5mV | 10mV @ 3.3V | 5mV |
| Current - Input Bias (Max) | 15µA | 15µV | 15µA | 30µA @ 3.3V | 15µA |
| Current - Output (Typ) | 45mA | 40mA | 20mA | 40mA | 40mA |
| Current - Quiescent (Max) | 9mA | 11mA | 9mA | 79.6mA | 8mA |
| CMRR, PSRR (Typ) | - | 38dB PSRR | 35dB PSRR | - | 38dB PSRR |
| Propagation Delay (Max) | 0.085ns | 0.12ns | 0.13ns | 0.088ns | 0.13ns |
| Hysteresis | 1mV | 1mV | 1mV | - | 1mV |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 16-LFQFN Exposed Pad | 16-LFQFN Exposed Pad | 16-LFQFN Exposed Pad | 16-LFQFN Exposed Pad | 16-LFQFN Exposed Pad |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 16-SMT (3x3) | 16-SMT (3x3) | 16-SMT (3x3) | 16-SMT (3x3) | 16-SMT (3x3) |
