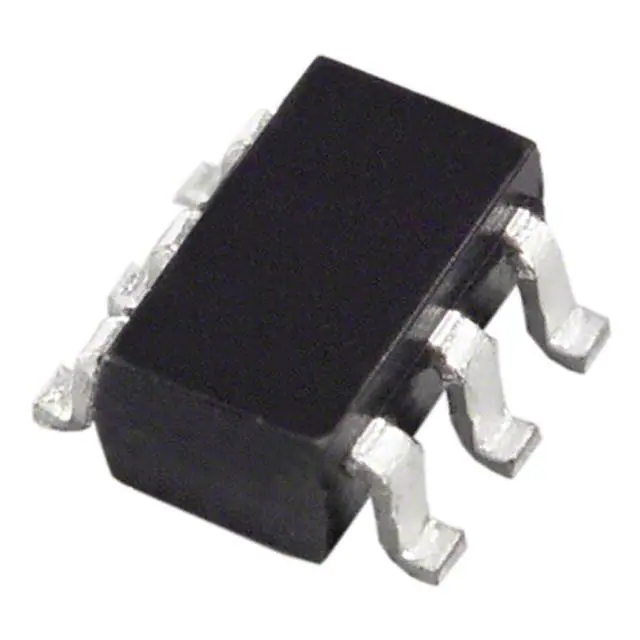

| Part Number | HMC550ETR | HMC550TR | HMC550AETR | HMC550ATR |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Obsolete | Active | Active |
| RF Type | WiMax, WLAN | WiMax, WLAN | WiMax, WLAN | WiMAX / WiBro |
| Topology | Reflective | Reflective | Reflective | Reflective |
| Circuit | SPST | SPST | SPST | SPST |
| Frequency Range | 0Hz ~ 6GHz | 0Hz ~ 6GHz | 0Hz ~ 6GHz | 0Hz ~ 6GHz |
| Isolation | 25dB | 25dB | 12dB | 12dB |
| Insertion Loss | 0.7dB | 0.7dB | 0.7dB | 0.7dB |
| Test Frequency | 6GHz | 2GHz | 6GHz | 6GHz |
| P1dB | - | - | - | 32dBm |
| IIP3 | 52dBm | 52dBm | 52dBm | 52dBm |
| Features | - | - | - | - |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Voltage - Supply | 1.2V ~ 5V | 1.2V ~ 5V | 5V | 3.3V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | SOT-23-6 | SOT-23-6 | SOT-23-6 | SOT-23-6 |
| Supplier Device Package | SOT-23-6 | SOT-23-6 | SOT-23-6 | SOT-23-6 |
