Please send RFQ , we will respond immediately.

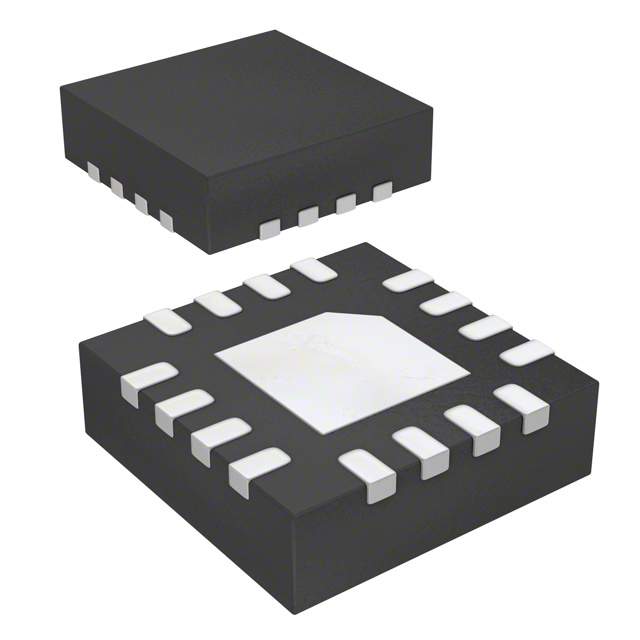

| Part Number | HMC547LP3E | HMC347LP3E | HMC547ALP3E | HMC547LP3 |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Obsolete | Active | Obsolete |
| RF Type | General Purpose | General Purpose | VSAT | General Purpose |
| Topology | Absorptive | Absorptive | Absorptive | Absorptive |
| Circuit | SPDT | SPDT | SPDT | SPDT |
| Frequency Range | 0Hz ~ 20GHz | 0Hz ~ 14GHz | 0Hz ~ 20GHz | 0Hz ~ 20GHz |
| Isolation | 38dB | 38dB | 38dB | 38dB |
| Insertion Loss | 2dB | 1.9dB | 2dB | 2dB |
| Test Frequency | 20GHz | 14GHz | 20GHz | 20GHz |
| P1dB | 23dBm | 23dBm | 23dBm | 23dBm |
| IIP3 | 45dBm (min) | 43dBm | 45dBm (min) | 45dBm (min) |
| Features | - | - | - | - |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Voltage - Supply | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -55°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) | 16-QFN (3x3) | 16-QFN (3x3) | 16-QFN (3x3) |
