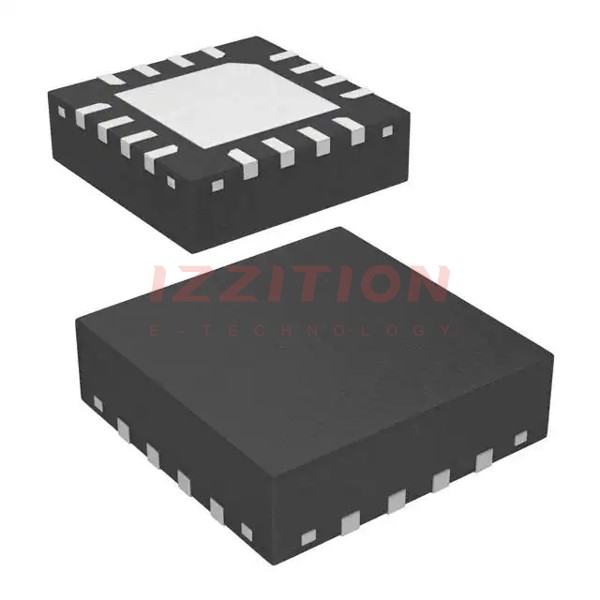

| Part Number | HMC547LC3TR | HMC547LP3TR | HMC547ALC3TR |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Obsolete | Active |
| RF Type | General Purpose | General Purpose | VSAT |
| Topology | Absorptive | Absorptive | Absorptive |
| Circuit | SPDT | SPDT | SPDT |
| Frequency Range | 0Hz ~ 28GHz | 0Hz ~ 20GHz | 0Hz ~ 28GHz |
| Isolation | 34dB | 38dB | 34dB |
| Insertion Loss | 2.4dB | 2dB | 2.4dB |
| Test Frequency | 28GHz | 20GHz | 28GHz |
| P1dB | 23dBm | 23dBm | 23dBm |
| IIP3 | 46dBm | 45dBm (min) | 46dBm |
| Features | - | - | - |
| Impedance | 50Ohm | 50Ohm | 50Ohm |
| Voltage - Supply | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 16-VFCQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-CSMT (3x3) | 16-QFN (3x3) | 16-SMT (3x3) |
