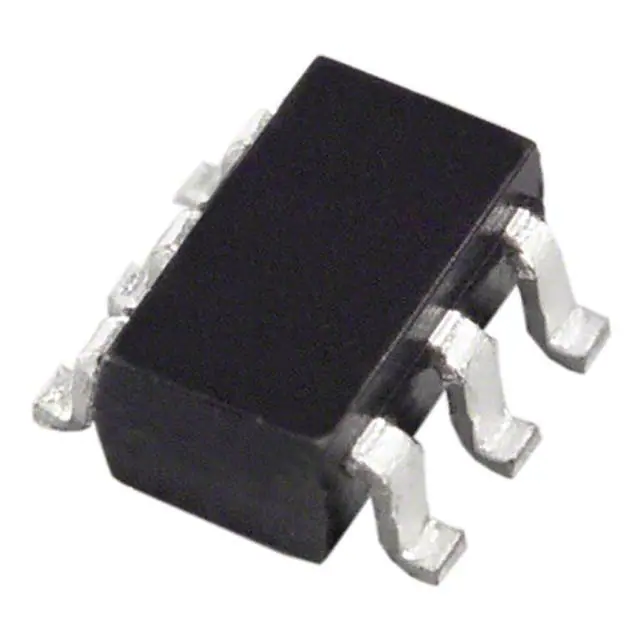

| Part Number | HMC544ATR | HMC545ATR | HMC544ETR | HMC544AETR |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Obsolete | Active |
| RF Type | WiMax, WLAN | WiMax, WLAN | General Purpose | WiMax, WLAN |
| Topology | - | - | Reflective | - |
| Circuit | SPDT | SPDT | SPDT | SPDT |
| Frequency Range | 0Hz ~ 4GHz | 0Hz ~ 3GHz | 0Hz ~ 4GHz | 0Hz ~ 4GHz |
| Isolation | 12dB | 22dB | 12dB | 12dB |
| Insertion Loss | 0.7dB | 0.4dB | 0.7dB | 0.7dB |
| Test Frequency | 4GHz | 3GHz | 4GHz | 4GHz |
| P1dB | 35dBm | 33dBm | 36dBm | 39dBm |
| IIP3 | 60dBm | 54dBm | 55dBm | 60dBm |
| Features | - | - | - | - |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Voltage - Supply | 3V | - | - | 5V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | SOT-23-6 | SOT-23-6 | SOT-23-6 | SOT-23-6 |
| Supplier Device Package | SOT-23-6 | SOT-23-6 | SOT-23-6 | SOT-23-6 |
