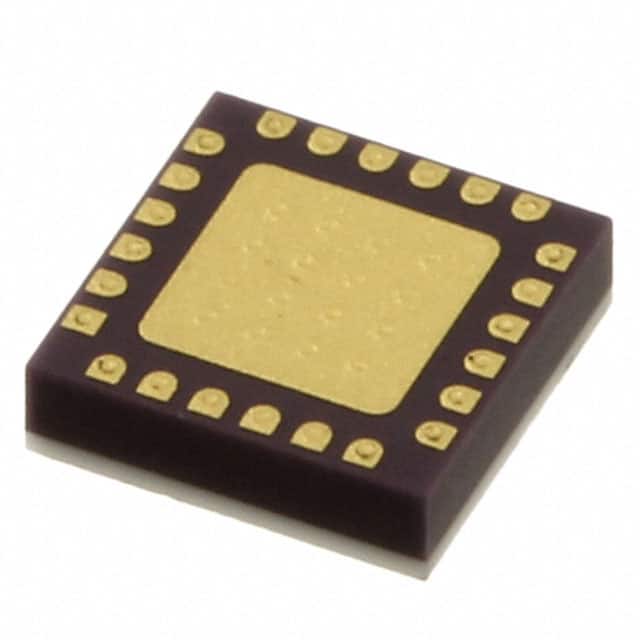

| Part Number | HMC525LC4TR | HMC526LC4TR | HMC527LC4TR | HMC528LC4TR | HMC520LC4TR | HMC521LC4TR | HMC522LC4TR | HMC523LC4TR | HMC525ALC4TR |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| RF Type | General Purpose | General Purpose | VSAT | General Purpose | General Purpose | Radar | General Purpose | General Purpose | VSAT |
| Frequency | 4GHz ~ 8.5GHz | 6GHz ~ 10GHz | 8.5GHz ~ 13.5GHz | 11GHz ~ 16GHz | 6GHz ~ 10GHz | 8.5GHz ~ 13.5GHz | 11GHz ~ 16GHz | 15GHz ~ 23GHz | 4GHz ~ 8.5GHz |
| Number of Mixers | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Gain | - | - | - | - | - | - | - | - | - |
| Noise Figure | - | - | - | - | - | - | - | - | - |
| Secondary Attributes | - | Up Converter | - | Up Converter | Up Converter | Up Converter | Up Converter | Up Converter | - |
| Current - Supply | - | - | - | - | - | - | - | - | - |
| Voltage - Supply | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 24-TFQFN Exposed Pad | 24-TFQFN Exposed Pad | 24-TFQFN Exposed Pad | 24-TFQFN Exposed Pad | 24-TFQFN Exposed Pad | 24-TFQFN Exposed Pad | 24-TFQFN Exposed Pad | 24-TFQFN Exposed Pad | 24-CLCC Exposed Pad |
| Supplier Device Package | 24-QFN (4x4) | 24-QFN (4x4) | 24-QFN (4x4) | 24-QFN (4x4) | 24-QFN (4x4) | 24-QFN (4x4) | 24-QFN (4x4) | 24-QFN (4x4) | 24-CLCC (3.9x3.9) |
