Please send RFQ , we will respond immediately.

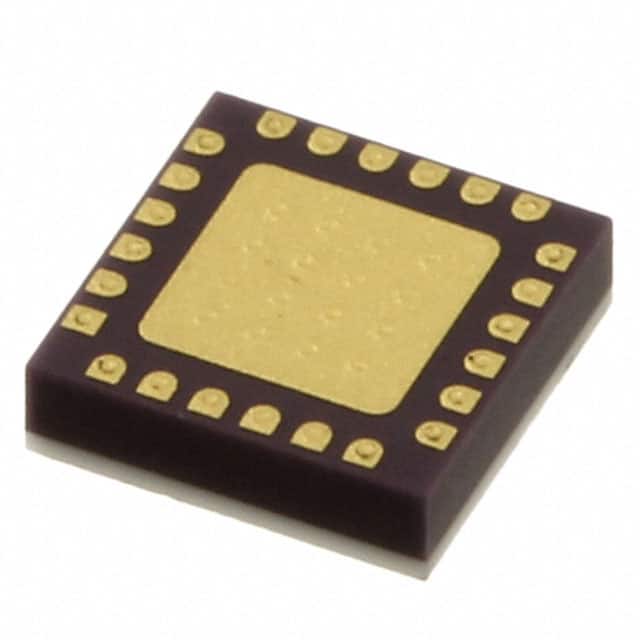

| Part Number | HMC521LC4 | HMC527LC4 | HMC528LC4 | HMC523LC4 | HMC522LC4 | HMC526LC4 | HMC525LC4 | HMC520LC4 | HMC521ALC4 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| RF Type | Radar | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | Radar |
| Frequency | 8.5GHz ~ 13.5GHz | 8.5GHz ~ 13.5GHz | 11GHz ~ 16GHz | 15GHz ~ 23GHz | 11GHz ~ 16GHz | 6GHz ~ 10GHz | 4GHz ~ 8.5GHz | 6GHz ~ 10GHz | 8.5GHz ~ 13.5GHz |
| Number of Mixers | 2 | 2 | 2 | 2 | 2 | 2 | 1 | 2 | 2 |
| Gain | - | - | - | - | - | - | - | - | - |
| Noise Figure | - | - | - | - | - | - | - | - | - |
| Secondary Attributes | Up Converter | Up Converter | Up Converter | Up Converter | Up Converter | Up Converter | - | Up Converter | - |
| Current - Supply | - | - | - | - | - | - | - | - | - |
| Voltage - Supply | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 24-TFQFN Exposed Pad | 24-TFQFN Exposed Pad | 24-TFQFN Exposed Pad | 24-TFQFN Exposed Pad | 24-TFQFN Exposed Pad | 24-TFQFN Exposed Pad | 24-TFQFN Exposed Pad | 24-TFQFN Exposed Pad | 24-CLCC Exposed Pad |
| Supplier Device Package | 24-QFN (4x4) | 24-QFN (4x4) | 24-QFN (4x4) | 24-QFN (4x4) | 24-QFN (4x4) | 24-QFN (4x4) | 24-QFN (4x4) | 24-QFN (4x4) | 24-CLCC (3.9x3.9) |
