| Part Number | HMC512LP5ETR | HMC513LP5ETR | HMC514LP5ETR | HMC5132LP5ETR | HMC510LP5ETR | HMC511LP5ETR |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Obsolete | Active | Active |
| Frequency Range | 4.8 ~ 5.4GHz, 9.6 ~ 10.8GHz | 5.215 ~ 5.73GHz, 10.43 ~ 11.46GHz | 5.585 ~ 6.01GHz, 11.17 ~ 12.02GHz | 5.2 ~ 5.73GHz, 10.43 ~ 22.46GHz | 4.225 ~ 4.775GHz, 8.45 ~ 9.55GHz | 4.525 ~ 5.075GHz, 9.05 ~ 10.15GHz |
| Frequency - Center | 5.1GHz, 10.2GHz | 5.4725GHz, 10.945GHz | 5.7975GHz, 11.595GHz | 39.105GHz, 10.945GHz | 4.5GHz, 9GHz | 4.8GHz, 9.6GHz |
| Voltage - Supply | 5V | 3V | 3V | 3V | 5V | 5V |
| Tuning Voltage (VDC) | 2 V ~ 13 V | 2 V ~ 13 V | 2 V ~ 13 V | 2 V ~ 13 V | 2 V ~ 13 V | 2 V ~ 13 V |
| 2nd Harmonic, Typ (dBc) | 25 | 15 | 17 | 15 | 15 | 15 |
| Icc Max | 370mA | 290mA | 290mA | 290mA | 360mA | 300mA |
| Pushing (MHz/V) | 30 | 25 | 18 | 25 (Typ) | 20 | 15 |
| Power (dBm) | -5.5±2.5, 10±4, 9±6 | -7±3, 8±3, 7.5±2.5 | -7±3, 8±3, 7.5±2.5 | -7 ±3, 8 ±3, 7.5 ±2.5 | -6±2, 11±3, 12.5±2.5 | 8±3, 12.5±3.5 |
| Phase Noise Typ (dBc/Hz) | -110 | -110 | -110 | -110 | -116 | -115 |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |

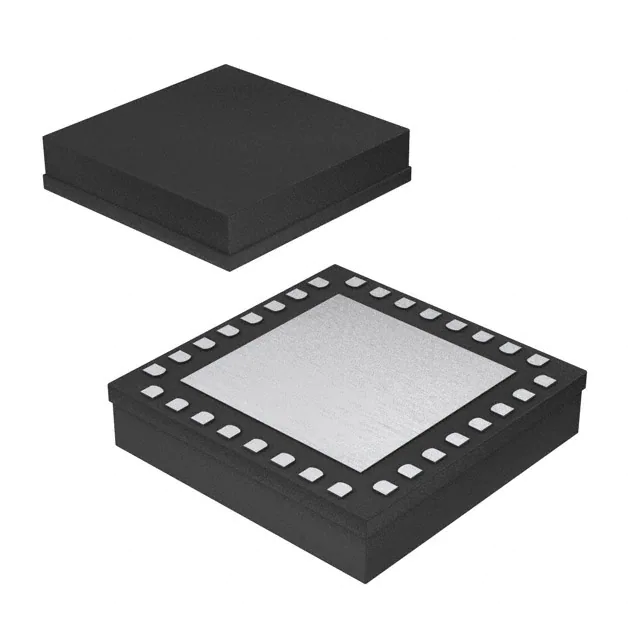

| Package / Case | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad, CSP | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
